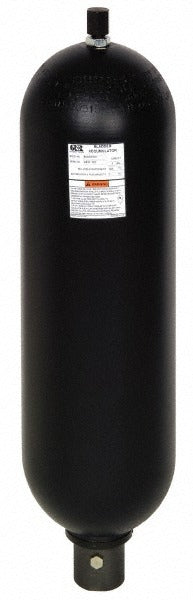

Parker BA01B3T01P2 Bladder Accumulator 1 Gallon

Product Description

The PARKER BA01B3T01P2 is a bladder-type hydraulic accumulator with a 1-gallon (226 cubic inch) fluid capacity. It stores hydraulic energy by compressing a nitrogen charge inside a flexible bladder, allowing the system to release stored pressure on demand, absorb shock, and compensate for volume changes. Standing 17 inches tall, this unit ships pre-charged and ready for integration into hydraulic circuits. The SAE 20 port thread size suits standard hydraulic plumbing, and the unit supports flow rates up to 600 GPM. Licensed hydraulic technicians and industrial maintenance mechanics are the primary installers.

This accumulator is suited for industrial and mobile hydraulic systems that require energy storage, shock dampening, or pulsation control. Its operating temperature range of -40 degrees F to 250 degrees F makes it appropriate for demanding environments including outdoor mobile equipment and indoor industrial machinery. The unit is pre-charged with nitrogen and is designed to work with nitrogen gas only as the charge medium. Typical applications include press circuits, clamping systems, emergency power circuits, and pump pulsation dampening in medium-to-high flow hydraulic systems.

Key Features

• 1-gallon (226 cubic inch) fluid capacity for effective energy storage
• Pre-charged bladder design ships ready for installation
• SAE 20 port thread size for standard hydraulic circuit compatibility
• Maximum flow rate of 600 GPM (2271 liters per minute)
• Wide operating temperature range: -40 degrees F to 250 degrees F
• Nitrogen charge medium only — compatible with standard bladder accumulator service procedures

Compatibility

Designed for use with nitrogen-charged hydraulic systems requiring a bladder-type accumulator with an SAE 20 port connection and 1-gallon capacity. No specific model or system family compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a licensed hydraulic technician familiar with high-pressure fluid power systems. Depressurize and isolate the hydraulic circuit completely before removing or installing any accumulator. Charge only with dry nitrogen gas — never use oxygen, air, or other gases. Verify that the pre-charge pressure setting matches the system requirements before placing the accumulator into service, and follow applicable OSHA and fluid power industry guidelines for accumulator handling and mounting.
