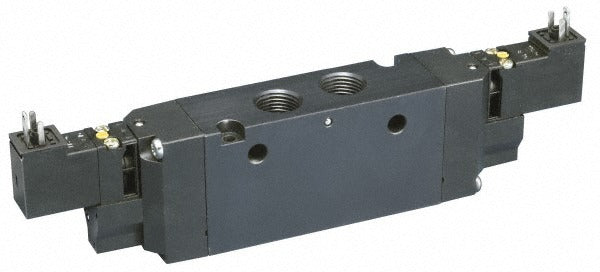

Parker B854BB553A Stacking Solenoid Valve 4-way 120V

Product Description

The PARKER B854BB553A is a stacking solenoid valve configured as a double solenoid, 4-way, 3-position directional control valve with solenoid return. It is designed to control the flow and direction of air or hydraulic fluid in pneumatic and fluid power circuits. Operating at 120 volts AC, the valve delivers a Cv rating of 6.6, supporting moderate-to-high flow applications. The 3/4-inch outlet port accommodates standard trade fittings. With its stacking body-ported design, multiple valves can be manifold-mounted to simplify plumbing and reduce system footprint. Licensed fluid power technicians and industrial maintenance professionals are the primary installers of this component.

The B854BB553A is suited for industrial and commercial fluid power systems where directional control of actuators, cylinders, or motors is required. The 3-position configuration allows for a center condition that can hold, exhaust, or pressurize ports depending on the circuit design. The stacking valve format makes it well-suited for multi-axis machine control panels and automated process equipment where space-efficient manifold assemblies are preferred.

Key Features

• Double solenoid actuation with solenoid return for positive position control in both directions
• 4-way, 3-position valve design provides flexible center-condition circuit options
• Cv rating of 6.6 supports moderate-to-high flow requirements
• 120V AC coil voltage compatible with standard industrial control panels
• 3/4-inch outlet port fits common trade fittings and manifold systems
• Stacking body-ported design enables multi-valve manifold assemblies

Compatibility

Designed as an OEM-style replacement or new-installation component for stacking solenoid valve manifold systems requiring a 4-way, 3-position double solenoid configuration with a 3/4-inch outlet and 120V AC actuation.

Installation Notes

Installation should be performed by a qualified fluid power technician or licensed industrial maintenance professional familiar with directional control valves. De-energize and depressurize the system fully before removing or installing any valve component. Follow applicable machine safety standards and the equipment manufacturer's service procedures when integrating into a manifold stack. Verify coil voltage matches the control circuit supply before energizing.
