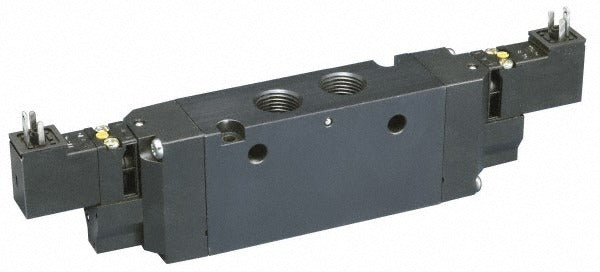

Parker B824BB553A Stacking Solenoid Valve 4-way 120V Ac

Product Description

The PARKER B824BB553A is a stacking solenoid valve designed for directional control of pneumatic or hydraulic flow in industrial and commercial fluid power systems. This 4-way, 2-position valve uses a double solenoid actuator with solenoid return, meaning each position shift is driven electrically rather than by spring force. It operates at 120 volts AC and carries a Cv rating of 7, indicating substantial flow capacity suitable for moderate-to-high-demand control circuits. The 3/4-inch outlet size and body-ported design make it compatible with stacking manifold assemblies. Installation and service are typically handled by fluid power technicians, industrial mechanics, or licensed trades working on automated equipment.

The B824BB553A is suited for use in pneumatic or hydraulic control panels, automated machinery, and process equipment where precise directional control is required. Its stacking configuration allows multiple valves to be mounted on a common manifold base, reducing plumbing complexity in multi-circuit systems. Typical applications include actuator control, cylinder sequencing, and directional switching in commercial or light industrial environments. The 120V AC coil voltage aligns with standard North American control circuit wiring practices.

Key Features

• 4-way, 2-position body-ported valve for directional flow control
• Double solenoid actuation with solenoid return — no spring return required
• Cv rating of 7 for high flow capacity in demanding control circuits
• 3/4-inch outlet size for compatibility with standard manifold and pipe connections
• 120V AC coil voltage matches common North American control panel wiring
• Stacking design simplifies multi-circuit manifold assemblies

Compatibility

Designed as an OEM-style replacement or service component for stacking solenoid valve manifold systems requiring a 4-way, 2-position double solenoid configuration with a 3/4-inch body-ported outlet and 120V AC coil.

Installation Notes

De-energize and lock out the control circuit and relieve all system pressure before removing or installing this valve. This valve should be installed by a qualified fluid power technician or licensed trade professional familiar with directional control valves and applicable codes. Verify manifold port alignment and ensure mating surfaces are clean and free of debris before stacking. Confirm coil voltage matches the control circuit supply before energizing.
