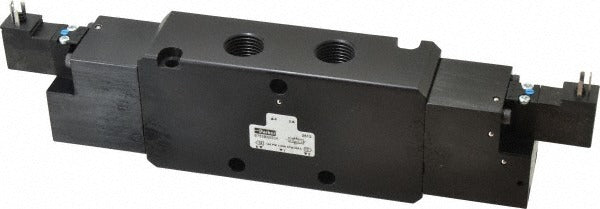

Parker B753BB553A Stacking Solenoid Valve 4-way 120V

Product Description

The PARKER B753BB553A is a stacking solenoid valve designed for directional control of pneumatic or fluid circuits in industrial and commercial applications. It operates as a 4-way, 3-position, body-ported valve with double solenoid actuation and solenoid return. The valve delivers a Cv rating of 5.7 and operates on 120V AC power. Rated for a maximum working pressure of 145 psi and a temperature range of 5 degrees F to 120 degrees F, it is built for reliable performance in demanding control system environments. The NEMA 4 enclosure rating makes it suitable for wet or washdown locations. Licensed HVAC technicians, industrial mechanics, and fluid power specialists are the typical installers.

The B753BB553A is used in pneumatic directional control systems where a stacking manifold configuration is required. Its 3-position design allows for flexible circuit functions such as blocked center, exhaust center, or pressure center configurations depending on system requirements. With 1/2 inch inlet and 1/2 inch outlet port sizes, it integrates into mid-flow pneumatic circuits in industrial automation, process control, and commercial HVAC systems. The stacking form factor reduces plumbing complexity on multi-valve manifold assemblies.

Key Features

• 4-way, 3-position body-ported valve configuration with double solenoid actuation
• Solenoid return operation on both ends for independent position control
• 5.7 Cv rating supports adequate flow capacity for mid-range pneumatic circuits
• 120V AC coil voltage for compatibility with standard industrial control panels
• Maximum working pressure of 145 psi for use in typical compressed air systems
• NEMA 4 enclosure rating suitable for washdown or outdoor-protected environments
• Stacking design simplifies multi-valve manifold assembly and reduces field plumbing

Compatibility

Designed as an OEM-style replacement or new-installation stacking solenoid valve for 4-way directional control pneumatic manifold systems requiring 1/2 inch porting and 120V AC solenoid coils.

Installation Notes

Installation should be performed by a qualified industrial mechanic or fluid power technician familiar with pneumatic directional control systems. De-energize and lock out all electrical power and depressurize the pneumatic circuit fully before servicing or replacing any valve in the manifold stack. Verify that supply voltage matches the 120V AC coil rating before energizing. Follow applicable NFPA and local codes for pneumatic system installation and electrical connections to solenoid coils.
