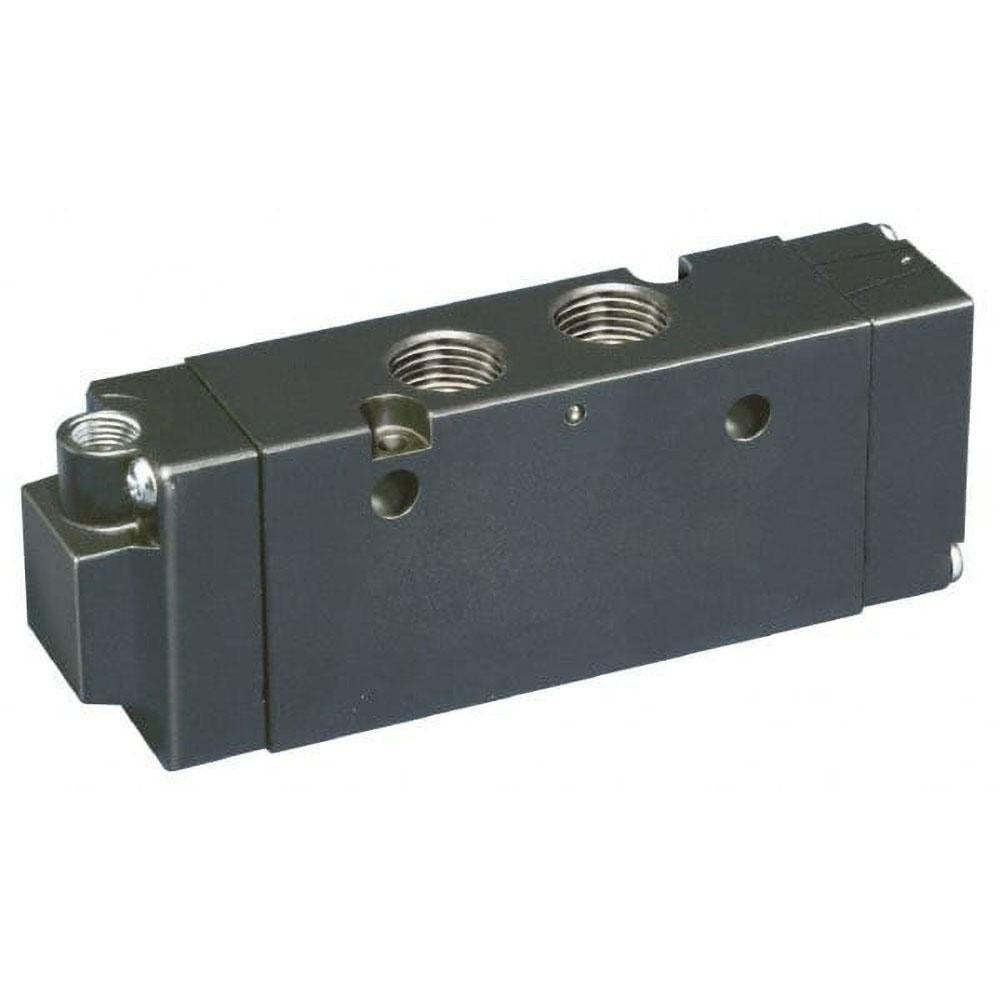

Parker B733000XXA Stacking Solenoid Valve 4-way 1/2 Inch

Product Description

The PARKER B733000XXA is a 4-way, 2-position stacking solenoid valve with a single air pilot actuator and air return. It is designed for directional control of pneumatic circuits in industrial and mechanical systems. The valve carries a Cv rating of 5.9, supports a maximum working pressure of 145 psi, and accepts multiple control voltages including 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC. The body-ported, stackable design allows multiple valves to be ganged together on a common manifold, reducing plumbing complexity. Licensed HVAC, industrial automation, and pneumatic system technicians are the primary installers of this valve.

This valve is suited for use in pneumatic directional control applications where a stacking manifold configuration is required. Its 1/2-inch inlet and 1/2-inch outlet ports accommodate standard compressed-air system piping. The NEMA 4 enclosure rating makes it appropriate for installation in wet or wash-down environments. Operating temperature range spans 5 degrees F to 120 degrees F, covering most indoor and covered industrial environments. It is commonly found in manufacturing, process automation, and mechanical equipment control panels.

Key Features

• 4-way, 2-position body-ported valve configuration for directional pneumatic control
• Single air pilot actuator with air return for fail-safe operation on loss of pilot signal
• Cv rating of 5.9 for reliable flow capacity in standard compressed-air systems
• Multi-voltage coil compatibility: 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC
• NEMA 4 rated enclosure suitable for wet and wash-down locations
• Stackable design supports manifold mounting to consolidate multiple valve stations

Compatibility

Designed as an OEM-style replacement or new-installation stacking solenoid valve for 4-way directional pneumatic control systems using 1/2-inch ported manifold or body-ported configurations.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial systems technician. Depressurize the air supply and de-energize all electrical circuits before servicing or mounting the valve. Verify that the control voltage matches the coil rating before connecting power. Consult applicable electrical codes and the system schematic to ensure correct pilot supply connections for proper air-return operation.
