Parker B723BB553A Stacking Solenoid Valve 4-way 120V Ac

Product Description

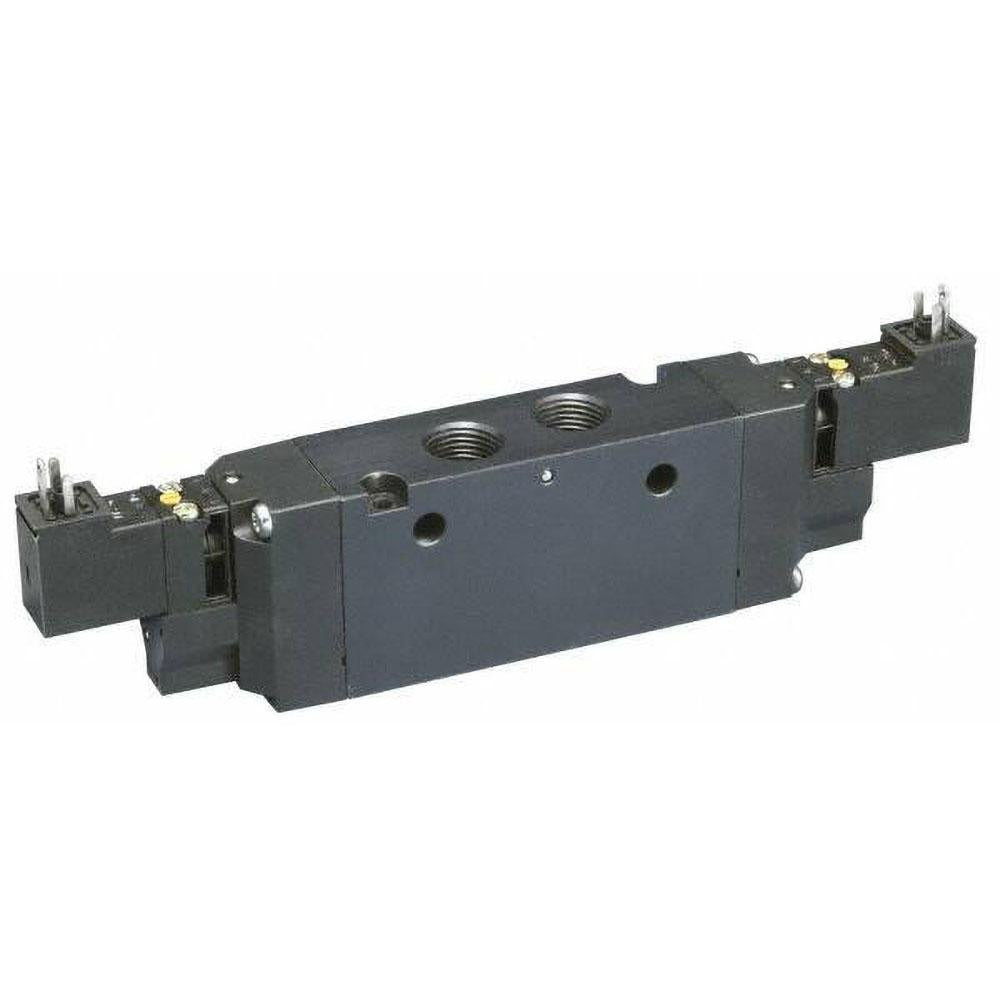

The PARKER B723BB553A is a 4-way, 2-position stacking solenoid valve with double solenoid actuation and solenoid return. It is designed for directional control of pneumatic or hydraulic circuits and mounts in line with other stacking-style valve bodies in a manifold assembly. The valve delivers a Cv rating of 5.9 and operates on 120 volts AC. With 1/2-inch inlet and outlet porting and a maximum working pressure of 145 psi, it suits medium-duty industrial fluid power circuits. Installation and service are typically handled by industrial maintenance technicians and fluid power specialists.

This valve is suited for industrial pneumatic and hydraulic control systems where directional flow switching is required. The 4-way body-ported design allows it to control double-acting actuators or cylinder circuits. The stacking configuration makes it a practical choice for manifold-based valve assemblies where multiple control functions must be consolidated in a compact footprint. It operates within a working temperature range of 5 degrees F to 120 degrees F, which covers most indoor industrial environments. The NEMA 4 coil enclosure rating supports use in locations exposed to washdowns or water splash.

Key Features

• 4-way, 2-position directional control valve with double solenoid actuation
• Cv rating of 5.9 for reliable flow capacity in medium-duty circuits
• 120V AC coil voltage for standard industrial power supply compatibility
• 1/2-inch inlet and 1/2-inch outlet port sizing
• Maximum working pressure of 145 psi
• NEMA 4 rated enclosure for washdown and splash-resistant applications
• Stacking body-ported design for manifold assembly integration

Compatibility

Designed as an OEM-style replacement or new-install component for stacking-style 4-way directional control valve manifold systems requiring 1/2-inch porting and 120V AC coil operation.

Installation Notes

Installation should be performed by a qualified fluid power technician or industrial maintenance professional. De-energize all electrical circuits and depressurize the hydraulic or pneumatic system fully before servicing or installing this valve. Verify that the manifold body and port connections are clean and free of debris before assembly. Consult the applicable fluid power system documentation and local electrical codes to confirm proper coil wiring and enclosure requirements.
