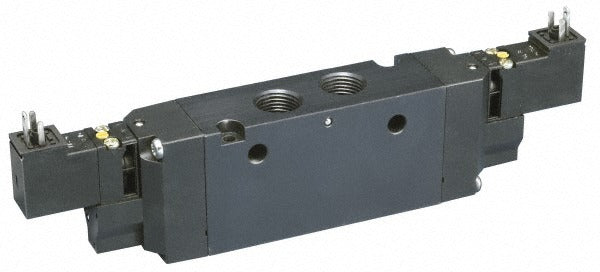

Parker B723BB549A Stacking Solenoid Valve 4-way 24VDC

Product Description

The PARKER B723BB549A is a stacking solenoid valve configured as a double solenoid, 4-way, 2-position body ported valve with solenoid return. It controls the direction of actuator movement in pneumatic or hydraulic circuits by shifting between two positions via independent solenoid coils on each end. Rated at 5.9 Cv and operating at 24VDC, this valve delivers reliable flow control in demanding directional-control applications. Its stacking design allows multiple valve sections to be assembled together on a common manifold, reducing plumbing complexity. Licensed HVAC technicians, industrial maintenance technicians, and fluid power specialists are the typical installers of this valve type.

This valve is suited for use in industrial automation, pneumatic cylinder actuation, and fluid power systems where directional control of air or compatible media is required. The 4-way body ported configuration directs flow from a pressure supply to one of two actuator ports while simultaneously exhausting the opposite port. The 1/2-inch outlet port size accommodates medium-flow circuit designs. The stacking body style is commonly found in manifold-mounted systems in both light commercial and industrial environments.

Key Features

• Double solenoid actuation allows independent control of each shift direction without relying on a spring return
• 5.9 Cv flow rating supports medium to high flow pneumatic and hydraulic circuits
• 24VDC operating voltage integrates directly with standard industrial and commercial control systems
• 4-way, 2-position body ported design enables full directional control of double-acting actuators
• Stacking body construction allows manifold assembly with additional valve sections to minimize field plumbing
• 1/2-inch outlet port size compatible with standard medium-flow circuit piping

Compatibility

Designed as an OEM-style directional control valve for use in stacking manifold assemblies requiring 4-way, 2-position double solenoid operation at 24VDC with a 1/2-inch outlet port size.

Installation Notes

Installation should be performed by a qualified fluid power technician or industrial maintenance professional familiar with directional control valve systems. De-energize and depressurize the circuit completely before removing or installing the valve. Verify supply voltage matches the 24VDC coil rating before energizing. Follow applicable industry codes and the system manufacturer's manifold assembly instructions when stacking multiple valve sections.
