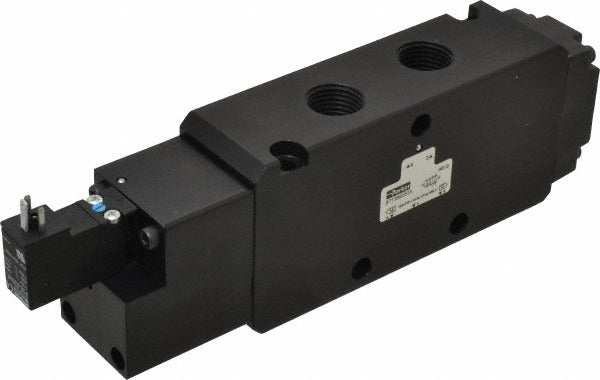

Parker B713BB553A Stacking Solenoid Valve 120V Ac

Product Description

The PARKER B713BB553A is a 4-way, 2-position stacking solenoid valve with a single solenoid actuator and air return. It controls directional airflow in pneumatic systems and is designed for integration into valve manifold stacks common in industrial and commercial pneumatic control applications. Rated at 5.9 Cv, the valve handles flow efficiently across a working pressure range of up to 145 psi. Operating voltage is 120V AC, and the NEMA 4 enclosure rating makes it suitable for environments where washdown or moisture exposure is a concern. Licensed HVAC technicians, mechanical contractors, and industrial maintenance trades install this type of valve.

The B713BB553A fits into pneumatic directional control circuits requiring a compact stacking-style body-ported valve. With a 1/2-inch inlet and 1/2-inch outlet, it integrates into manifold assemblies used in process control, pneumatic actuation, and automation systems. The air return design allows the valve to reset to its default position using supply air pressure when the solenoid is de-energized, eliminating the need for a spring return. The valve is rated for temperatures as low as 5 degrees F and as high as 120 degrees F, making it appropriate for both indoor and light outdoor installations.

Key Features

• 4-way, 2-position body-ported valve design for directional pneumatic control
• Single solenoid with air return for default-position reset without a mechanical spring
• 5.9 Cv flow rating for consistent pneumatic performance
• 120V AC coil voltage for compatibility with standard industrial control circuits
• NEMA 4 enclosure rating for use in wet or washdown-rated environments
• 1/2-inch inlet and outlet ports for straightforward manifold integration

Compatibility

Designed as an OEM-style stacking solenoid valve for use in body-ported pneumatic valve manifold assemblies requiring a 4-way, 2-position, single solenoid configuration with a 1/2-inch port size and 120V AC coil.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician familiar with directional control valves and manifold assemblies. Always depressurize the pneumatic system and de-energize all electrical circuits before removing or installing the valve. Verify coil voltage matches the control circuit supply before energizing. Follow applicable NFPA and local mechanical codes for pneumatic system assembly and electrical connections.
