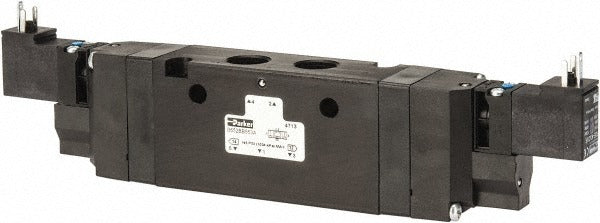

Parker B652BB553A Stacking Solenoid Valve 4-way 120V

Product Description

The PARKER B652BB553A is a stacking solenoid valve designed for directional control of pneumatic or fluid circuits in industrial and commercial applications. This is a 4-way, 3-position, body-ported valve actuated by a double solenoid with solenoid return. It operates on 120 volts AC and carries a Cv rating of 2.1, indicating moderate flow capacity suitable for a range of actuator and cylinder control tasks. The valve meets NEMA 4 enclosure classification, making it appropriate for environments where water ingress or washdown conditions are a concern. Licensed tradespeople and mechanical contractors typically specify this valve in automated process or motion-control systems.

This valve is suited for use in industrial automation, HVAC controls, pneumatic actuator circuits, and process equipment where precise directional control is required. The 3-position configuration allows for center-blocked, exhaust, or pressure-center functions depending on the system design. Inlet and outlet port sizes are both 3/8 inch, and the valve is rated for working pressures up to 145 psi, with an operating temperature range of 5 degrees F to 120 degrees F. Mechanical contractors and industrial technicians install this type of valve in manifold-mounted stacking configurations alongside compatible valve bodies and bases.

Key Features

• 4-way, 3-position body-ported design for directional flow control
• Double solenoid actuation with solenoid return
• 120V AC coil voltage
• Cv rating of 2.1 for moderate-flow applications
• NEMA 4 rated enclosure for wet or washdown environments
• 3/8 inch inlet and outlet ports
• Maximum working pressure of 145 psi

Compatibility

Designed as an OEM-style stacking solenoid valve for use in manifold-mounted pneumatic or fluid directional control systems requiring a 4-way, 3-position double solenoid configuration with 3/8 inch porting.

Installation Notes

Installation should be performed by a qualified mechanical or instrumentation technician familiar with directional control valves and pneumatic or hydraulic circuit design. De-energize and depressurize the system fully before removing or installing any valve component. Verify that line voltage matches the 120V AC coil rating before energizing. Follow applicable codes and the original equipment manufacturer guidelines for manifold assembly torque and port sealing.
