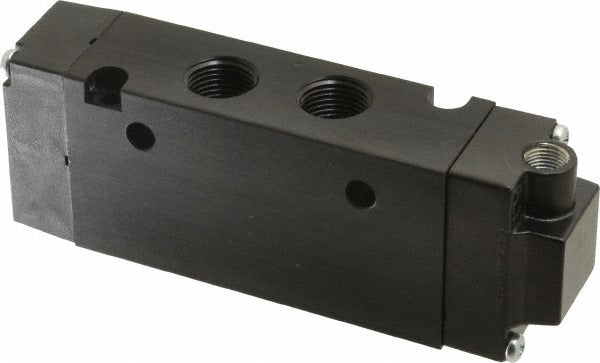

Parker B632000XXA Stacking Solenoid Valve 4-way

Product Description

The PARKER B632000XXA is a 4-way, 2-position stacking solenoid valve with single air pilot actuation and spring return. It is designed for directional control of pneumatic circuits and is rated for a Cv of 2.7. The valve accepts a wide range of control voltages including 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC, making it adaptable across many machine control and automation panels. With 3/8-inch inlet and outlet ports, it is sized for mid-range pneumatic flow demands. This valve is installed by industrial maintenance technicians and pneumatic systems specialists working on automated equipment and process control systems.

The B632000XXA is suited for use in pneumatic directional control applications on industrial machinery, assembly equipment, and process automation systems. Its body-ported, stackable design allows it to be grouped with other valves in manifold configurations, reducing plumbing complexity and panel space. The operating temperature range of 5 degrees F to 120 degrees F covers most indoor industrial environments. NEMA 4 rating makes it appropriate for installations where wash-down or splash exposure is a concern.

Key Features

• 4-way, 2-position body-ported directional control valve
• Single air pilot actuation with spring return for fail-safe positioning
• Cv rating of 2.7 for reliable mid-range pneumatic flow
• Multi-voltage compatibility: 12 VDC, 24 VDC, 240 VDC, 120 VAC, 24 VAC
• NEMA 4 rated enclosure for wash-down and splash-resistant installations
• Stackable body-ported design supports manifold assembly configurations

Compatibility

Designed as an OEM-style replacement or new-installation directional control valve for pneumatic systems requiring a 4-way, 2-position, body-ported stacking valve with 3/8-inch porting.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. De-energize all electrical circuits and depressurize the pneumatic supply before servicing or replacing the valve. Verify that the control voltage available at the panel matches one of the supported input voltages before wiring. Consult applicable electrical codes and machine safety standards when integrating into existing control systems.
