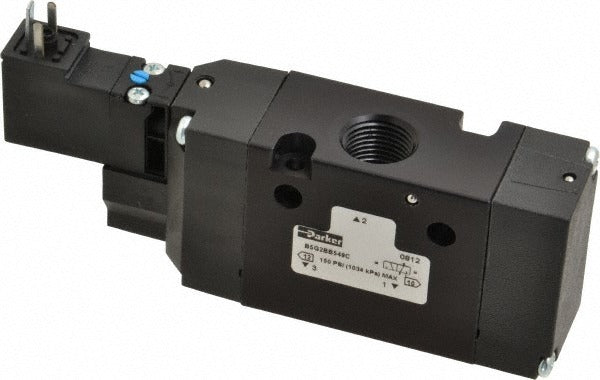

Parker B5G2BB549C Stacking Solenoid Valve 3-way 24VDC

Product Description

The PARKER B5G2BB549C is a stacking solenoid valve designed for pneumatic directional control applications. It operates as a 3-way, 2-position body ported valve actuated by a single solenoid with air return. The valve carries a Cv rating of 1.4 and runs on 24VDC, making it well-suited for integration into automated pneumatic control manifolds. Rated to a maximum working pressure of 145 psi and built to NEMA 4 standards, it handles demanding industrial and commercial environments. Licensed automation technicians and pneumatic system specialists are the typical installers of this component.

This valve fits into stacking manifold assemblies used in industrial automation, machine building, HVAC controls, and process equipment. The 3/8-inch inlet and 3/8-inch outlet ports accommodate standard pneumatic tubing and fittings commonly found in these systems. Its 2-position, air-return design means the valve shifts to its default position when the solenoid is de-energized, relying on supply air pressure for return actuation. This behavior is important to confirm against the circuit requirements before installation.

Key Features

• 3-way, 2-position body ported valve configuration for directional pneumatic control
• Single solenoid with air return — default position restored by supply pressure on de-energization
• Cv rating of 1.4 for controlled flow capacity
• 24VDC coil voltage for compatibility with standard low-voltage control circuits
• NEMA 4 rated enclosure suitable for washdown and wet industrial environments
• Maximum working pressure of 145 psi with an operating temperature range of 5 degrees F to 120 degrees F

Compatibility

Designed as an OEM-style stacking solenoid valve for use in pneumatic manifold assemblies requiring 3-way, 2-position directional control with 3/8-inch porting and 24VDC actuation.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician familiar with directional control valve manifolds. Depressurize the pneumatic circuit and disconnect control power before servicing or replacing any valve in the stack. Confirm supply voltage matches the 24VDC coil rating before energizing. Verify air return pressure is sufficient to actuate the return stroke under the specific circuit conditions of the application.
