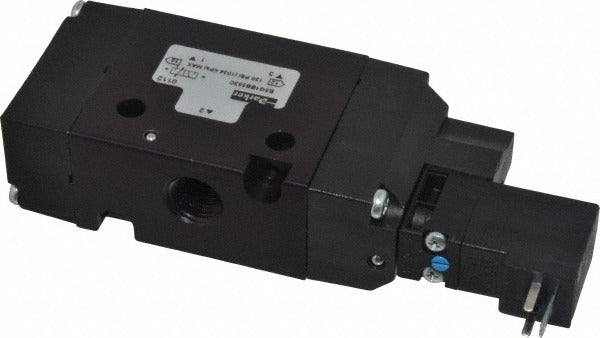

Parker B5G1BB553C Stacking Solenoid Valve 120V Ac

Product Description

The PARKER B5G1BB553C is a single-solenoid, 3-way, 2-position stacking solenoid valve with air return, designed for directional control of compressed air in pneumatic systems. It operates at 120 volts AC and carries a Cv rating of 1.4, providing reliable flow control in a compact body-ported design. At 2.4 inches high and 5.29 inches in length, it fits into tight panel or manifold installations. Rated for working pressures up to 145 psi and a NEMA 4 enclosure classification, this valve suits industrial and commercial pneumatic control applications where moisture resistance and consistent switching are required. Licensed pneumatic or industrial automation technicians are the typical installers.

This valve is suited for use in compressed air distribution and pneumatic control circuits found in commercial and light industrial environments. The 3-way body-ported configuration makes it appropriate for single-acting cylinder control, pilot signal switching, and similar directional control tasks. The 1/4-inch inlet and 1/4-inch outlet ports are standard for small-bore pneumatic circuits. Its operating temperature range of 5 degrees F to 120 degrees F covers most indoor and sheltered outdoor installations. The NEMA 4 rating supports use in washdown or weather-exposed panel locations.

Key Features

• Single solenoid actuation with air return for fail-safe spring-free operation
• 3-way, 2-position body-ported valve design for directional airflow control
• Cv rating of 1.4 for consistent flow in small-bore pneumatic circuits
• Rated up to 145 psi maximum working pressure
• NEMA 4 enclosure classification for moisture and dust resistance
• Compact form factor at 2.4 inches high and 5.29 inches in length for panel or manifold mounting

Compatibility

Designed as an OEM-style replacement or direct-fit component for stacking solenoid valve manifold assemblies using 1/4-inch body-ported pneumatic circuits operating at 120 volts AC.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial control technician. Depressurize the air supply and de-energize all electrical circuits before servicing or replacing this valve. Verify supply voltage matches the 120 volt AC coil rating before applying power. Follow applicable local codes and manufacturer wiring guidelines for solenoid valve installations in control panels.
