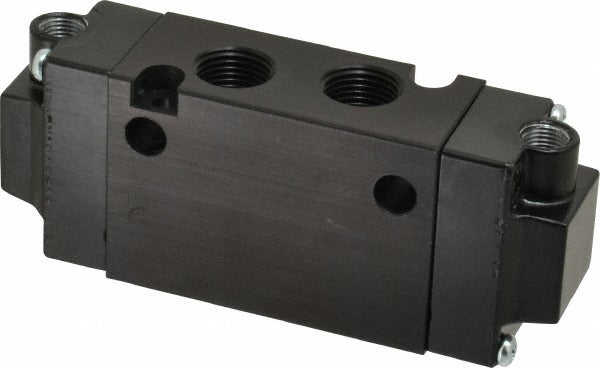

Parker B542000XXC 4-way Stacking Solenoid Valve 3/8 Inch

Product Description

The PARKER B542000XXC is a 4-way, 2-position stacking solenoid valve designed for pneumatic directional control applications. It uses a double air pilot actuator with pilot return, meaning both shift and return functions are driven by air pilot signals rather than a mechanical spring. The valve carries a Cv rating of 1.4 and accepts a wide range of control voltages: 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC. It is rated to NEMA 4 for use in wet or washdown environments. Licensed HVAC, industrial, and fluid power technicians typically specify this valve in pneumatic control circuits where compact, modular valve stacking is required.

This valve is suited for industrial pneumatic systems that require modular manifold-mount configurations. Its body-ported, 4-way design makes it appropriate for actuating double-acting cylinders or directing airflow between two output paths. The stacking format allows multiple valves to share a common supply and exhaust manifold, reducing plumbing complexity in tight panel or machine installations. Operating temperature range runs from 5 degrees F to 120 degrees F, and the valve handles working pressures up to 145 psi, making it compatible with standard plant air systems.

Key Features

• 4-way, 2-position body-ported valve for directional pneumatic control
• Double air pilot actuation with pilot return — no mechanical spring required
• Cv rating of 1.4 for consistent, predictable flow performance
• Multi-voltage coil: 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC
• NEMA 4 enclosure rating for wet or washdown service
• Stacking design supports shared-manifold installations to reduce field plumbing

Compatibility

Designed as an OEM-style replacement or new-install valve for modular stacking pneumatic manifold systems requiring a 4-way, 2-position double air pilot configuration with 3/8 inch ported connections.

Installation Notes

Installation should be performed by a qualified fluid power or industrial controls technician familiar with pneumatic directional control valves. Depressurize the pneumatic supply and de-energize all electrical control circuits before mounting or wiring the valve. Verify that the pilot air supply pressure is within the valve's rated working range before commissioning. Follow applicable NFPA and local codes for pneumatic system design and electrical wiring of solenoid coils.
