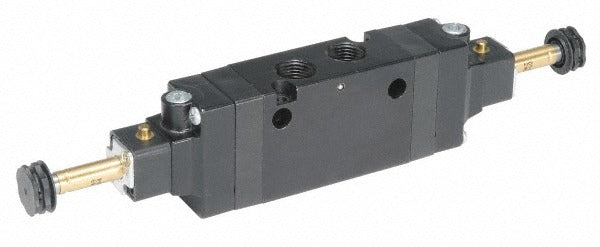

Parker B522BCNXXC Double Solenoid Valve 3/8 in Port

Product Description

The PARKER B522BCNXXC is a double solenoid, 2-position directional control valve designed for pneumatic and fluid control systems in industrial and commercial applications. The valve body is constructed from aluminum with a Buna-N seal, providing a durable, lightweight assembly suited for a range of media. In its unactuated state, flow passes normally open through ports 1 and 2. Operating pressure ranges from 20 psi to 145 psi, with a Cv factor of 1.4 for flow capacity sizing. Solenoid coils are not included and must be ordered separately. Licensed technicians and industrial maintenance professionals are the primary installers of this valve.

This valve is suited for use in pneumatic control circuits, fluid handling assemblies, and automated process lines where a valveless-coil, 2-position directional valve is required. The 3/8 inch port size makes it appropriate for mid-range flow applications in both light industrial and commercial system builds. It is rated for a maximum operating temperature of 120 degrees F, which fits most standard indoor process environments. The valve is sold individually and ships as a single unit.

Key Features

• Double solenoid, 2-position configuration with valveless coil design
• Normally open through ports 1 and 2 in unactuated state
• 3/8 inch port size with a Cv factor of 1.4
• Operating pressure range: 20 psi to 145 psi
• Aluminum body with Buna-N seal for lightweight, corrosion-resistant construction
• Solenoid coils not included — must be specified and ordered separately

Compatibility

Designed as an OEM-style directional control valve for pneumatic and fluid systems requiring a 3/8 inch port, 2-position double solenoid configuration with a valveless coil arrangement.

Installation Notes

Installation should be performed by a qualified industrial or mechanical technician familiar with pneumatic or hydraulic directional control systems. Depressurize and isolate the system completely before removing or installing the valve. Confirm that the selected solenoid coils are compatible with the valve body before energizing the circuit. Follow all applicable OSHA and system-specific lockout/tagout procedures during service.
