Parker B3G0BB549C Stacking Solenoid Valve 3-way 24VDC

Product Description

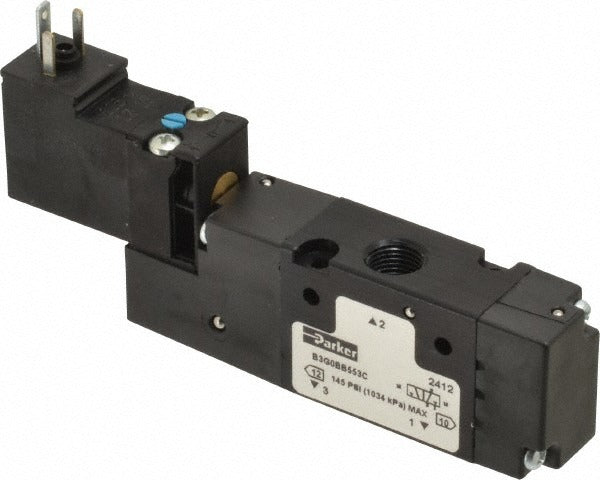

The PARKER B3G0BB549C is a 3-way, 2-position stacking solenoid valve designed for compressed air control in pneumatic systems. It features a single solenoid actuator with air return, operating on 24 volts DC. The valve delivers a Cv rating of 0.750 and handles working pressures up to 145 psi, making it suitable for directional control in light industrial and automation applications. At 2.14 inches tall and 4.20 inches in length, the compact body-ported design fits into space-constrained manifold stacking configurations. Licensed pneumatic technicians and automation integrators are the typical installers for this valve.

This valve is suited for pneumatic directional control applications in industrial automation, machine building, and process equipment. The 1/8 inch inlet and outlet ports accommodate standard pneumatic tubing and fittings common in light-duty cylinder and actuator circuits. Its stacking design allows multiple valves to share a common supply manifold, reducing plumbing complexity in multi-actuator setups. Rated for operating temperatures from 5 degrees F to 120 degrees F, the valve is appropriate for indoor industrial environments within that range.

Key Features

• 3-way, 2-position body-ported valve design for directional pneumatic control
• Single solenoid with air return — de-energized state relies on supply air pressure to return the spool
• 24 VDC coil voltage for direct integration with standard PLC output cards
• Cv rating of 0.750 supports adequate flow for small-bore cylinder and actuator applications
• Maximum working pressure of 145 psi with NEMA 4 enclosure rating for wash-down or wet environments
• Stacking body-ported configuration simplifies multi-valve manifold assembly

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic stacking manifold systems using 1/8 inch ported 3-way solenoid valves operating at 24 VDC.

Installation Notes

Installation should be performed by a qualified pneumatic technician or automation professional familiar with directional control valves. Isolate and depressurize the pneumatic supply line completely before removing or installing the valve. Verify the control circuit is de-energized before connecting or disconnecting solenoid wiring. Ensure port orientation and manifold alignment are confirmed prior to final assembly to avoid cross-porting or air leaks.
