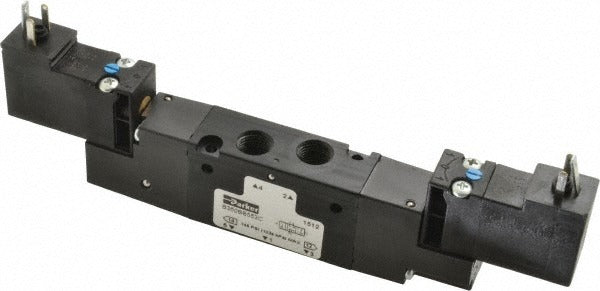

Parker B350BB553C Stacking Solenoid Valve 4-way 120V

Product Description

The PARKER B350BB553C is a stacking solenoid valve designed for pneumatic directional control applications. It operates as a 4-way, 3-position valve with a double solenoid actuator and solenoid return, meaning both ends of the valve are energized electrically to shift and hold position. The valve runs on 120 volts AC and carries a Cv rating of 0.600, indicating moderate flow capacity suited for compact pneumatic circuits. With a 1/8 inch outlet port size and a body-ported design, it fits into stacking valve manifold assemblies used in industrial and commercial pneumatic control systems. Licensed pneumatic or industrial automation technicians are the typical installers.

This valve is applied in stacking manifold configurations where multiple directional control valves share a common supply and exhaust base. The 3-position, double solenoid design allows the valve to shift to either work port or remain in a center condition when both solenoids are de-energized, making it suitable for applications requiring mid-position flow control. It is used in light industrial machinery, automation panels, and process control equipment where compact modular valve assemblies are required.

Key Features

• 4-way, 3-position body-ported valve for directional control in pneumatic circuits
• Double solenoid actuation with solenoid return on both ends
• 120 volt AC coil voltage for standard industrial electrical supply compatibility
• Cv rating of 0.600 for controlled flow in compact pneumatic systems
• 1/8 inch outlet port size for integration into stacking manifold assemblies
• 6.44 inch body length for manifold stack planning and enclosure layout

Compatibility

Designed as an OEM-style replacement or addition for stacking solenoid valve manifold assemblies requiring a 4-way, 3-position double solenoid configuration with 1/8 inch porting and 120V AC actuation.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic directional control systems and industrial electrical wiring. De-energize and lockout the pneumatic supply and all electrical circuits before removing or installing any solenoid valve. Verify manifold base porting and seal compatibility before stacking. Follow applicable NFPA and NEC guidelines for solenoid coil wiring and enclosure requirements.
