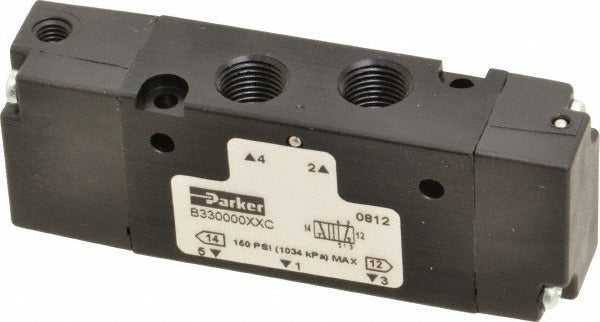

Parker B330000XXC Stacking Solenoid Valve 4-way Air Pilot

Product Description

The PARKER B330000XXC is a 4-way, 2-position stacking solenoid valve actuated by a single air pilot with air return. It controls directional airflow in pneumatic circuits and is designed to stack with compatible manifold-mount valve bodies, making it a compact solution for multi-valve pneumatic systems. The valve carries a Cv rating of 0.750 and accepts a wide range of voltages including 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC. With 1/8-inch inlet and outlet ports and a maximum working pressure of 145 psi, it fits into tight panel or manifold assemblies. Licensed pneumatic and industrial maintenance technicians typically specify and install this valve.

This valve is suited for light industrial and automation applications where directional control of compressed air or inert gas is required. Its stacking body-ported design allows multiple valves to share a common manifold, reducing plumbing complexity in machine control panels, automated assembly equipment, and process control systems. Operating temperatures range from 5 degrees F to 120 degrees F, making it appropriate for standard indoor industrial environments. The NEMA 4 coil rating adds protection against washdown and dust ingress.

Key Features

• 4-way, 2-position directional control with single air pilot actuation and air return
• Cv rating of 0.750 for controlled flow in compact pneumatic circuits
• Wide voltage compatibility: 12 VDC, 24 VDC, 240 VDC, 120 VAC, and 24 VAC
• 1/8-inch inlet and outlet ports for direct manifold or inline installation
• Maximum working pressure of 145 psi
• NEMA 4 rated coil for protection against dust and water ingress
• Stacking body-ported design reduces plumbing in multi-valve assemblies

Compatibility

Designed as an OEM-style replacement or new-installation component for stacking pneumatic valve manifold systems requiring 4-way, 2-position directional control with air pilot actuation.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize the pneumatic circuit and de-energize all electrical supply before removing or installing the valve. Verify that supply voltage matches one of the rated coil voltages before energizing. Follow applicable NFPA and machine safety codes for pneumatic control wiring and manifold assembly.
