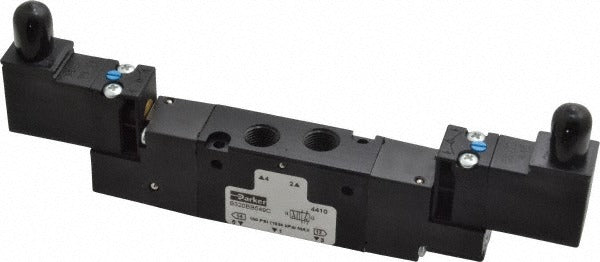

Parker B320BB549C Stacking Solenoid Valve 4-way 24VDC

Product Description

The PARKER B320BB549C is a stacking solenoid valve configured for 4-way, 2-position operation with double solenoid actuation and solenoid return. It is designed for directional control of pneumatic circuits and mounts as part of a stacking valve assembly, making it a compact solution for multi-valve manifold systems. The valve carries a Cv rating of 0.750 and operates on 24 volts DC. It handles a maximum working pressure of 145 psi and is rated for environments from 5 degrees F to 120 degrees F. Licensed pneumatic system technicians and industrial maintenance professionals are the primary installers for this type of directional control component.

This valve is suited for pneumatic automation and directional control applications in both light industrial and commercial settings. Its stacking body-ported design allows it to be combined with other compatible stacking valves on a common manifold base, reducing plumbing complexity and overall footprint. The 1/8 inch inlet and outlet ports fit standard small-bore pneumatic circuit configurations. The NEMA 4 enclosure rating makes it appropriate for use in environments where water ingress protection is required, such as wash-down areas or outdoor enclosures.

Key Features

• 4-way, 2-position directional control with double solenoid actuation and solenoid return
• Cv rating of 0.750 for precise flow control in small-bore pneumatic circuits
• Operates at 24 volts DC with a maximum working pressure of 145 psi
• NEMA 4 rated enclosure for protection against water ingress
• 1/8 inch inlet and outlet ports for standard pneumatic circuit integration
• Stacking body-ported design for manifold assembly configurations

Compatibility

Designed as an OEM-style stacking solenoid valve for use in 4-way directional control pneumatic manifold systems requiring 1/8 inch body-ported connections and 24 volt DC actuation.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or industrial maintenance professional. Depressurize the pneumatic circuit and disconnect all power before removing or installing any solenoid valve. Verify that the manifold base and adjacent stacking valves are compatible with 1/8 inch body-ported configurations before assembly. Confirm that the supply voltage matches the 24 volt DC coil requirement before energizing the valve.
