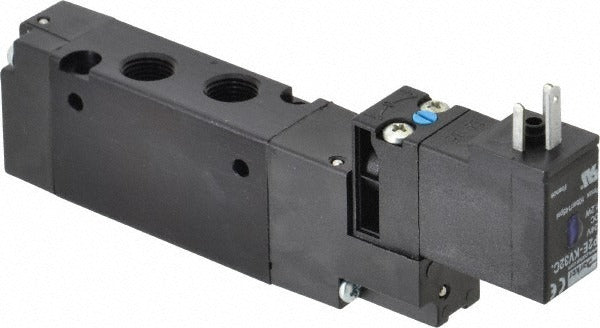

Parker B310BB549C Stacking Solenoid Valve 4-way 24VDC

Product Description

The PARKER B310BB549C is a stacking solenoid valve designed for directional control of compressed air in pneumatic systems. It operates as a 4-way, 2-position valve with a single solenoid and spring-air return, making it well suited for actuating cylinders, rotary actuators, and other pneumatic devices that require controlled airflow in two directions. The valve carries a Cv rating of 0.750 and runs on 24 volts DC. At 2.14 inches in height and 4.67 inches in length, it is compact enough for modular manifold stacking configurations. Licensed HVAC and industrial automation technicians install this type of valve in machine control, process automation, and pneumatic circuit panels.

This valve is designed for use in industrial pneumatic control circuits where modular, stackable valve assemblies are preferred. The 4-way body ported design directs air to and from an actuator through 1/8 inch inlet and outlet ports. The single solenoid with air return keeps the circuit simple and reliable in applications where a fail-safe return position is required. It operates across a working temperature range of 5 degrees F to 120 degrees F, making it suitable for standard indoor industrial environments. The NEMA 4 enclosure rating supports use in locations exposed to washdowns or splashing water.

Key Features

• 4-way, 2-position directional control for pneumatic actuators
• Single solenoid with air return for fail-safe operation
• Cv rating of 0.750 for controlled flow in compact pneumatic circuits
• 24 volts DC coil voltage for compatibility with common industrial control systems
• 1/8 inch inlet and outlet ports for inline or manifold-stacked plumbing
• NEMA 4 rated enclosure suitable for wet or washdown environments
• Compact stacking body at 4.67 inches long and 2.14 inches high

Compatibility

Designed as an OEM-style replacement or new-install stacking solenoid valve for pneumatic directional control circuits requiring a 4-way, 2-position, single solenoid, air return valve with 1/8 inch ports and 24 volts DC actuation.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial controls technician familiar with directional control valve assemblies. Isolate and depressurize the pneumatic circuit completely and de-energize all control power before removing or installing this valve. Verify that the supply voltage matches the 24 volt DC coil rating before energizing. Follow the manifold or base-mount manufacturer torque and port orientation guidelines when assembling stacked valve banks.
