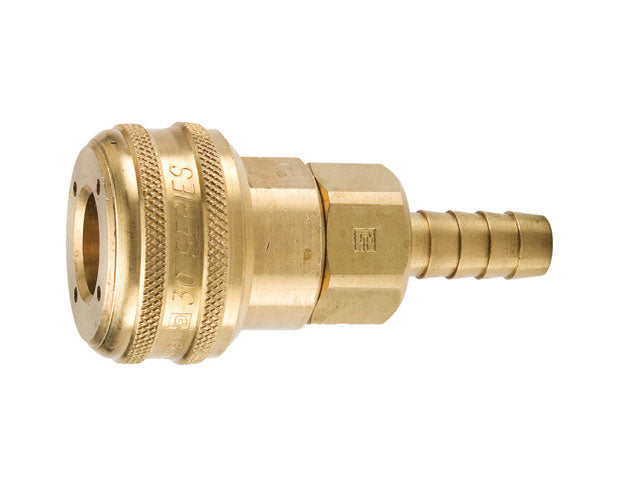

Parker B30-5B 30 Series Coupler - Hose Barb

Product Description

Parker 30 Series B30-5B is a push-to-connect quick disconnect coupler designed for pneumatic applications. This coupler features a single shut-off to help minimize spills during disconnection. Its design includes a brass body with steel valves for durability and reliability.

• Pneumatic push-to-connect operation
• Brass construction for extended service life
• Locked mechanism for safety and ease of use

Product Highlights

This coupling method allows efficient connection and disconnection of hoses without the need for tools.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: B30-5B

Technical Specifications

• Body Size: 1/4 Inch
• Inner Diameter: 0.375 Inch
• Max Pressure: 300 PSI (20 bar)
• Material: Brass
• Quick Coupler Type: Pneumatic Push-to-Connect
• Interchange: Industrial Interchange
• Application: Pneumatic
• Series: 30
• Configuration Type: Hose Barb
• Max Pressure Range: 250 to 499 PSI (17 to 34 bar)
• Parker Division: Quick Coupling
• Parker Group: Fluid Connector
