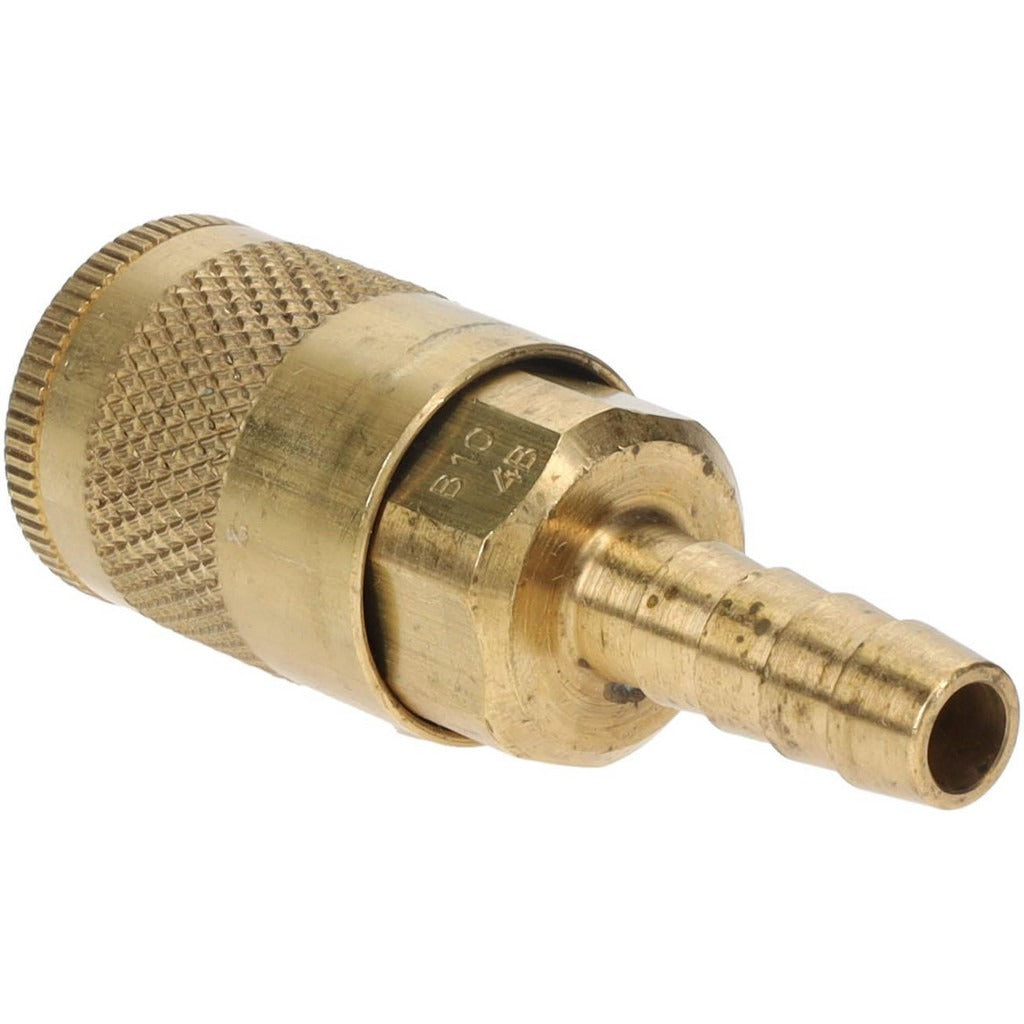

Parker B10-4B Pneumatic Hose Coupling 1/4 in Brass

Product Description

The PARKER B10-4B is a brass pneumatic hose coupler designed for Tru-Flate automotive interchange pneumatic systems. It features a 1/4 inch body diameter with a hose barb thread type and accepts a 5/16 inch inside diameter hose. Rated to 300 psi maximum working pressure, this Series 10 coupler is built for reliable connection and disconnection in compressed air lines. The brass construction resists corrosion and holds up in demanding shop and field environments. HVAC technicians, plumbers, and general trade professionals use it wherever a Tru-Flate-style quick-connect fitting is needed in a pneumatic tool or air supply line.

This coupler is suited for residential and light commercial service environments where Tru-Flate automotive-style pneumatic couplings are the standard. It is commonly installed on air hose assemblies used with pneumatic tools in shop settings, service vans, and job sites. The hose barb end connects directly to 5/16 inch ID pneumatic hose without requiring additional adapters. At 2.49 inches overall length and 0.19 pounds, it is compact enough for tight installations without sacrificing flow capacity or pressure rating.

Key Features

• Tru-Flate automotive interchange design for broad pneumatic system compatibility
• Brass construction for corrosion resistance and durability
• 300 psi maximum working pressure rating
• Hose barb thread type accepts 5/16 inch ID hose directly
• 1/4 inch body diameter, Series 10 platform
• Compact 2.49 inch overall length for use in space-limited installations

Compatibility

Designed as an OEM-style replacement or service coupler for pneumatic systems using Tru-Flate automotive interchange fittings with 5/16 inch ID hose connections.

Installation Notes

Installation is performed by qualified technicians familiar with compressed air systems. Depressurize and bleed the air line completely before removing or installing any pneumatic coupling. Ensure the hose barb is fully seated and the hose is secured with an appropriate clamp rated for the working pressure. Follow applicable shop safety and compressed air handling guidelines when servicing pneumatic lines.
