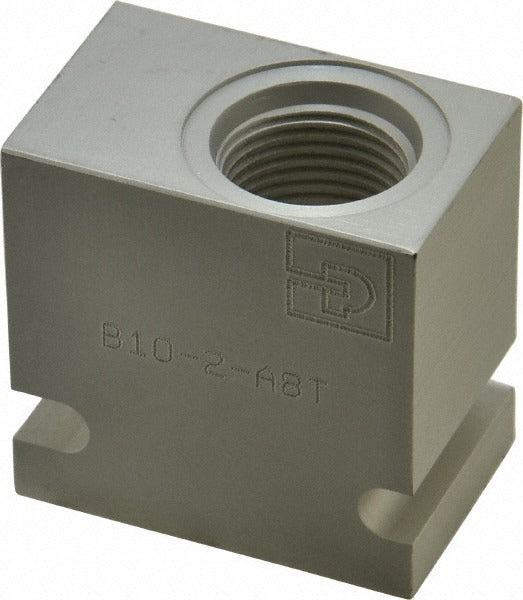

Parker B10-2-A8T Hydraulic Cartridge Valve 30 Gpm 3000 Psi

Product Description

The PARKER B10-2-A8T is a hydraulic in-line cartridge body valve designed for four-way flow regulation in hydraulic control circuits. Built from aluminum, it accepts a standard C10-2 cavity and uses a 7/8-14 UNF threaded connection. The valve handles a maximum flow rate of 30 GPM and is rated to 3,000 psi maximum working pressure. At 0.37 pounds, it is a compact, lightweight component suited for mobile and industrial hydraulic systems. Licensed hydraulic technicians and fluid power specialists install this valve as part of directional control assemblies where an in-line cartridge configuration is required.

The B10-2-A8T fits applications where four-way directional control is needed in a space-efficient in-line cartridge format. Typical installations include mobile equipment hydraulics, industrial machinery control circuits, and other systems requiring reliable directional flow switching at moderate to high pressures. The C10-2 cavity size is a widely used standard, making this valve suitable for manifold blocks and inline bodies designed to that specification. Its aluminum construction keeps weight low in mobile applications where mass is a design consideration.

Key Features

• Four-way flow regulation for directional control in hydraulic circuits
• Rated to 3,000 psi maximum working pressure for demanding hydraulic service
• 30 GPM maximum flow rate supports high-volume circuit demands
• 7/8-14 UNF thread standard for secure, leak-resistant connection
• C10-2 cavity size fits standard manifold and inline body designs
• Aluminum body construction reduces overall assembly weight

Compatibility

Designed for use in hydraulic systems equipped with a C10-2 cavity and a 7/8-14 UNF threaded port. Suitable as an OEM-style in-line cartridge replacement or new installation in mobile and industrial hydraulic control circuits.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system specialist. Depressurize and lock out the hydraulic system fully before removing or installing any cartridge valve. Verify cavity cleanliness and inspect threads before seating the cartridge to prevent contamination-related valve failure. Follow applicable fluid power standards and equipment manufacturer torque and assembly procedures during installation.
