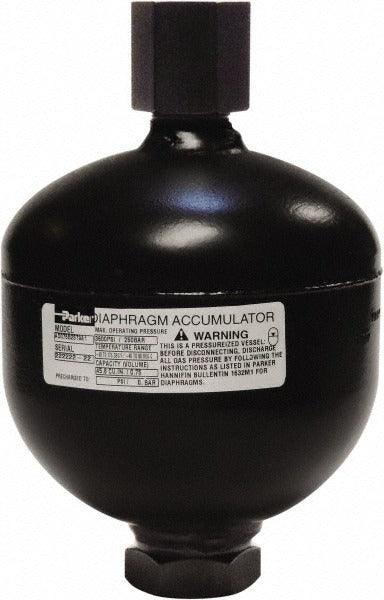

Parker AD016B25T9A1 Hydrin Diaphragm Accumulator

Product Description

The PARKER AD016B25T9A1 is a hydrin diaphragm accumulator designed for hydraulic system energy storage, shock absorption, and fluid supplementation. It features a maximum working pressure of 3,620 psi and a 10-pound capacity, making it suitable for demanding hydraulic circuit applications. The unit ships pre-charged with nitrogen and uses a hydrin diaphragm as the flexible separating element between the gas and fluid chambers. It is typically installed by hydraulic system technicians and fluid power specialists in industrial and mobile hydraulic circuits.

This accumulator fits inline hydraulic circuits where energy storage or pulsation dampening is required. It is rated for operating temperatures from -40 degrees F to 176 degrees F, which covers a wide range of mobile equipment, industrial machinery, and process system environments. The SAE 6 female port thread connection allows for direct integration into standard hydraulic plumbing. The unit accommodates a maximum flow rate of 11 GPM, making it appropriate for moderate-flow hydraulic lines.

Key Features

• Hydrin diaphragm construction provides reliable gas-to-fluid separation across a wide temperature range
• Pre-charged with nitrogen for immediate service readiness
• Maximum working pressure of 3,620 psi suits high-pressure hydraulic systems
• SAE 6 female port thread for standard hydraulic circuit integration
• Maximum flow rate of 11 GPM supports moderate-flow applications
• Operating temperature range of -40 degrees F to 176 degrees F for broad environmental compatibility

Compatibility

Designed for use with nitrogen-charged hydraulic accumulator circuits. Compatible with systems requiring an SAE 6 female port thread connection and operating within the specified pressure and temperature ratings.

Installation Notes

Installation should be performed by a qualified hydraulic systems technician. Always depressurize and isolate the hydraulic circuit fully before removing or installing the accumulator. Verify nitrogen pre-charge pressure against system requirements before placing the unit in service. Follow applicable fluid power safety standards and local codes when working with high-pressure hydraulic components.
