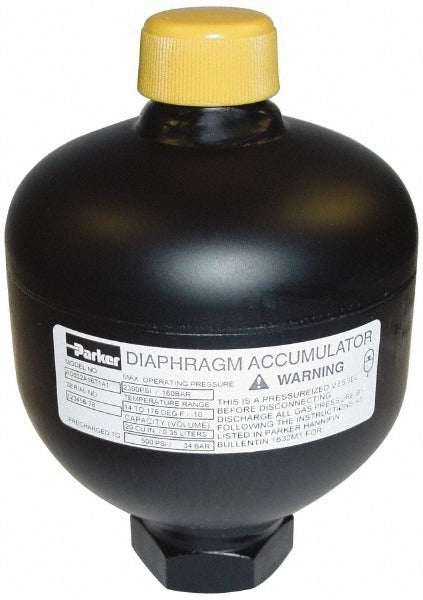

Parker AD007A25T9A1 Diaphragm Accumulator 5 Lb 3620 Psi

Product Description

The PARKER AD007A25T9A1 is a hydrin diaphragm accumulator designed for hydraulic system fluid management. It stores hydraulic fluid under pressure and releases it on demand, helping to stabilize system pressure, absorb shock, and compensate for minor fluid volume changes. The unit handles a maximum working pressure of 3,620 psi and ships pre-charged with nitrogen. It measures 4.35 inches high with a 2.52-inch diameter body, making it compact enough for integration into tight hydraulic circuits. Installation is handled by licensed hydraulic system technicians or qualified fluid power specialists.

This accumulator is suited for industrial and mobile hydraulic applications where pressure pulsation dampening, energy storage, or emergency fluid supply is required. The SAE port 6 female connection integrates with standard hydraulic plumbing configurations. Its operating temperature range of -40 degrees F to 176 degrees F makes it applicable in both outdoor mobile equipment and indoor industrial machinery. The hydrin diaphragm material provides good resistance to hydraulic fluids commonly used in these systems.

Key Features

• Maximum working pressure of 3,620 psi for demanding hydraulic circuits
• Hydrin diaphragm construction offers hydraulic fluid compatibility and durability
• Pre-charged with nitrogen for immediate installation readiness
• SAE port 6 female connection for straightforward hydraulic line integration
• Maximum flow rate of 11 GPM supports moderate-duty hydraulic systems
• Wide operating temperature range from -40 degrees F to 176 degrees F

Compatibility

Designed as an OEM-style replacement or new-installation component for hydraulic systems requiring a compact diaphragm-style accumulator with SAE port 6 female connections and nitrogen pre-charge capability.

Installation Notes

Installation should be performed by a qualified hydraulic system technician or certified fluid power specialist. Depressurize and isolate the hydraulic circuit completely before removing or installing any accumulator. Verify that the system working pressure does not exceed the 3,620 psi rated limit of this unit. Always confirm the pre-charge nitrogen pressure using an appropriate gauge before putting the accumulator into service.
