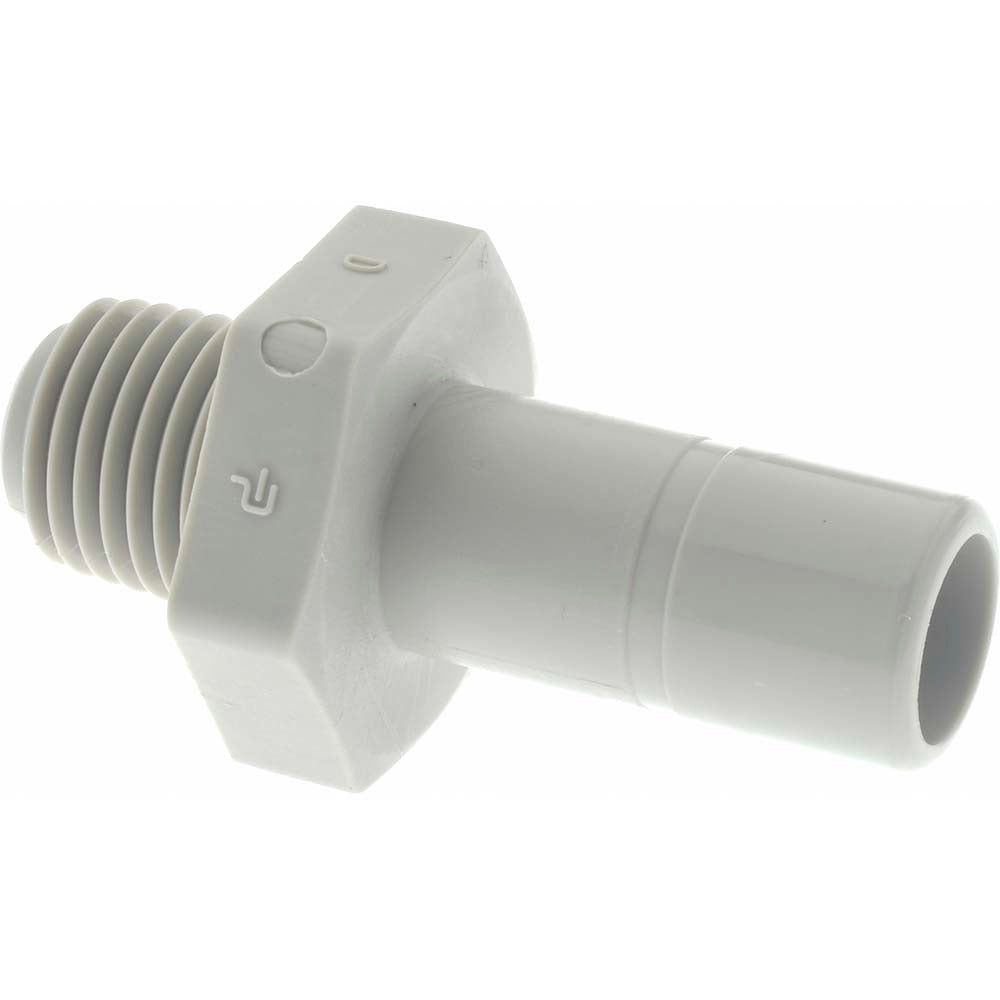

Parker A8TMC4 Push-to-connect Tube Stem Adapter

Product Description

The PARKER A8TMC4 is a push-to-connect tube stem adapter designed to create a fast, tool-free connection between a 1/2 inch OD tube and a 1/4 inch NPTF threaded port. The body is molded from polyoxymethylene (POM), a rigid engineering thermoplastic known for chemical resistance and dimensional stability. Rated to 250 psi, this fitting is suited for pneumatic lines, fluid transfer systems, and instrumentation tubing where a reliable push-in connection to a tapered pipe thread port is required. Licensed HVAC technicians, plumbers, and industrial service technicians commonly install this type of fitting during system assembly or repair.

This adapter is appropriate for light-duty pneumatic and fluid applications in residential and commercial settings. The push-to-connect design allows tubing to seat and lock without additional tools, making it practical for tight spaces or quick-turnaround service calls. The NPTF thread provides a dry-seal mechanical connection that does not rely solely on thread sealant. Typical use cases include instrument air lines, control tubing, and low-pressure fluid distribution.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• 1/2 inch OD tube connection with 1/4 inch NPTF male thread
• Rated to 250 psi working pressure
• POM (polyoxymethylene) construction offers chemical resistance and rigidity
• Tan color body for visual identification in multi-line installations
• Compact, lightweight form at 0.07 pounds for installations in confined spaces

Compatibility

Designed as an OEM-style replacement or direct-install fitting for systems using 1/2 inch OD tubing with 1/4 inch NPTF threaded ports in pneumatic or fluid distribution applications.

Installation Notes

Installation is performed by qualified tradespeople familiar with push-to-connect pneumatic or fluid fittings. De-pressurize and isolate the system fully before removing any existing fitting or inserting the new adapter. Ensure the mating NPTF port is clean and free of debris before threading in the adapter; apply thread sealant per the system manufacturer and local code requirements. Do not exceed the 250 psi rated working pressure, and verify tubing OD is within tolerance before seating to ensure the collet engages correctly.
