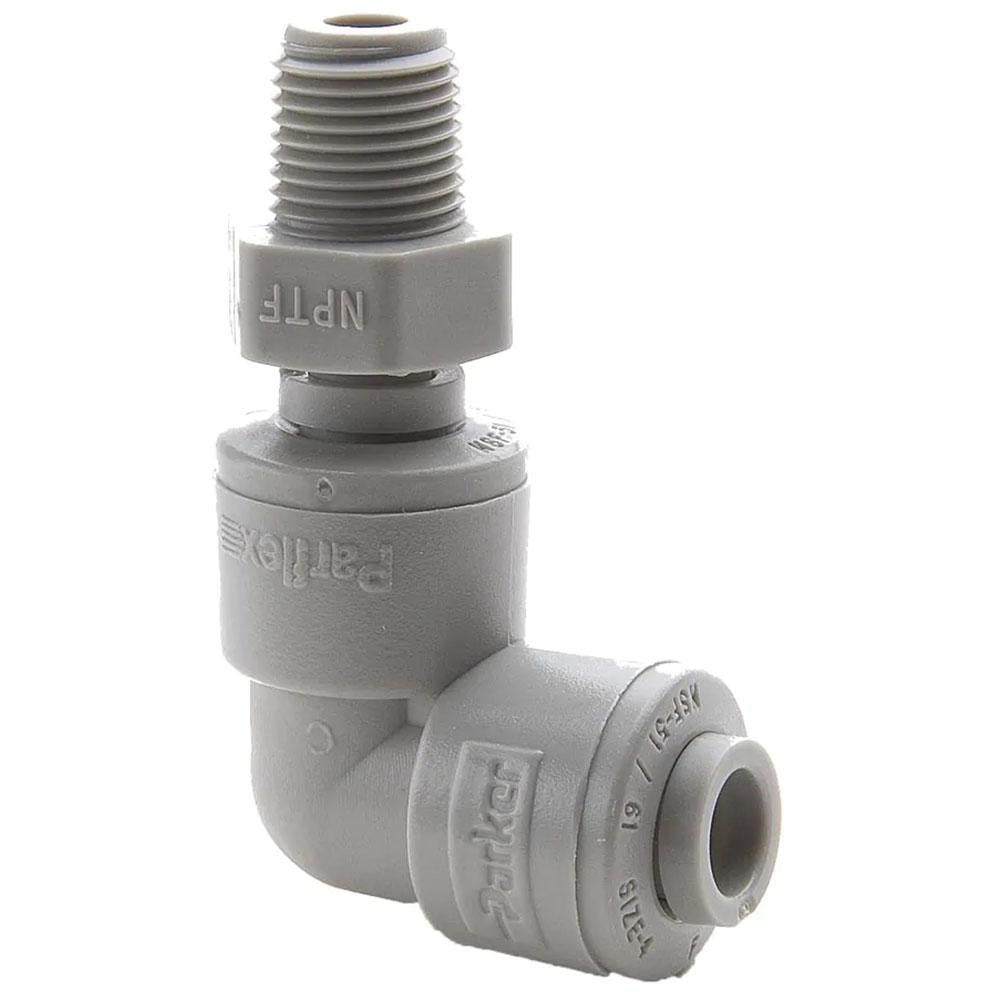

Parker A8MES6-MG Push-to-connect Male Swivel Elbow 1/2 Od

Product Description

The PARKER A8MES6-MG is a push-to-connect male swivel elbow tube fitting designed for tube-to-pipe connections in pneumatic and fluid handling systems. Constructed from POM (polyoxymethylene), this fitting accepts 1/2 inch OD tubing and connects to a 3/8 inch NPTF male thread. The swivel design allows the pipe-thread end to rotate during installation, reducing stress on connected tubing and simplifying assembly in tight spaces. Rated to 250 psi, it is suited for compressed air lines, water service, and light fluid distribution in commercial and industrial applications. Licensed plumbers, pipefitters, and HVAC technicians handle installation of this fitting type.

This fitting is appropriate for residential and light commercial pneumatic or fluid plumbing systems where push-to-connect speed and a swivel elbow configuration are needed. The elbow geometry supports 90-degree directional changes from tubing runs to threaded pipe ports. It is typically installed in panel assemblies, control systems, and equipment plumbing where 1/2 inch OD tubing terminates at a 3/8 inch NPTF threaded port. The gray POM body provides resistance to a broad range of fluids and is compatible with copper, nylon, and polyethylene tubing of the specified OD.

Key Features

• Push-to-connect design allows fast, tool-free tubing insertion for 1/2 inch OD tube
• Male swivel elbow provides 90-degree directional change with rotational freedom during installation
• 3/8 inch NPTF thread ensures a pressure-tight pipe connection without additional sealant in many applications
• POM (polyoxymethylene) body rated to 250 psi for reliable performance in compressed air and fluid service
• Gray color coding aids identification and organization in multi-line plumbing assemblies

Compatibility

Designed as an OEM-style push-to-connect fitting for systems using 1/2 inch OD tubing with a 3/8 inch NPTF threaded port connection.

Installation Notes

Installation of this fitting should be performed by a licensed plumber, pipefitter, or qualified HVAC technician. Depressurize and isolate the system fully before disconnecting or installing any fittings. Ensure tubing is cut cleanly and squarely and deburred before insertion into the push-to-connect collet to achieve a proper seal. Apply thread sealant tape or compound to the NPTF threads as required by local plumbing codes and the system fluid service.
