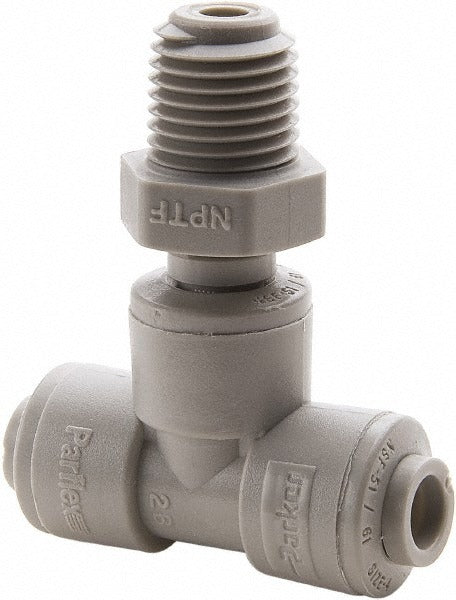

Parker A5MTS2-MG Male Swivel Branch Tee 5/16 in Od Nptf

Product Description

The PARKER A5MTS2-MG is a push-to-connect male swivel branch tee tube fitting designed for tube-to-pipe connections in pneumatic and fluid-handling systems. It accepts 5/16-inch OD tubing on the push-to-connect ports and terminates with a 1/8-inch NPTF male threaded branch outlet. The body is molded from POM (polyoxymethylene), a rigid acetal resin rated to 300 psi, making it well-suited for compressed air, low-pressure hydraulics, and general instrumentation lines. The swivel design on the branch outlet allows the male thread to be oriented during installation without rotating the tubing. HVAC technicians, plumbers, and industrial maintenance techs install this fitting where a branch tee connection is needed without cutting or flaring tubing.

This fitting is used in residential and light commercial applications including pneumatic control lines, HVAC condensate and sensor tubing, refrigeration instrumentation, and general-purpose fluid distribution systems. The push-to-connect mechanism allows fast, tool-free tube insertion on the straight-through ports, reducing labor time on multi-connection manifolds or control panels. The gray POM body and EPDM O-ring seals are compatible with a range of fluids including water, air, and many mild chemicals. It is sold individually and is appropriate wherever a compact branch tee with an NPT port is required.

Key Features

• Push-to-connect design accepts 5/16-inch OD tubing without tools or ferrules
• 1/8-inch NPTF male threaded branch outlet with swivel for easy thread engagement
• POM (acetal) body rated to 300 psi for pneumatic and low-pressure fluid service
• EPDM O-ring seals provide reliable sealing across a range of media
• Compact form factor at approximately 1 inch in length for tight-space installations
• Gray color coding for quick visual identification in multi-line systems

Compatibility

Designed as an OEM-style push-to-connect fitting for use with 5/16-inch OD tubing and 1/8-inch NPTF male threaded ports in pneumatic, HVAC instrumentation, and general fluid-handling plumbing assemblies.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified industrial maintenance personnel. Shut off and depressurize the system completely before removing or installing any fitting. Ensure tubing is cut cleanly and squarely and is free of burrs before inserting into the push-to-connect port; a deburring tool is recommended. Apply appropriate thread sealant to the NPTF male threads per the system fluid and local plumbing code requirements before tightening into the mating port.
