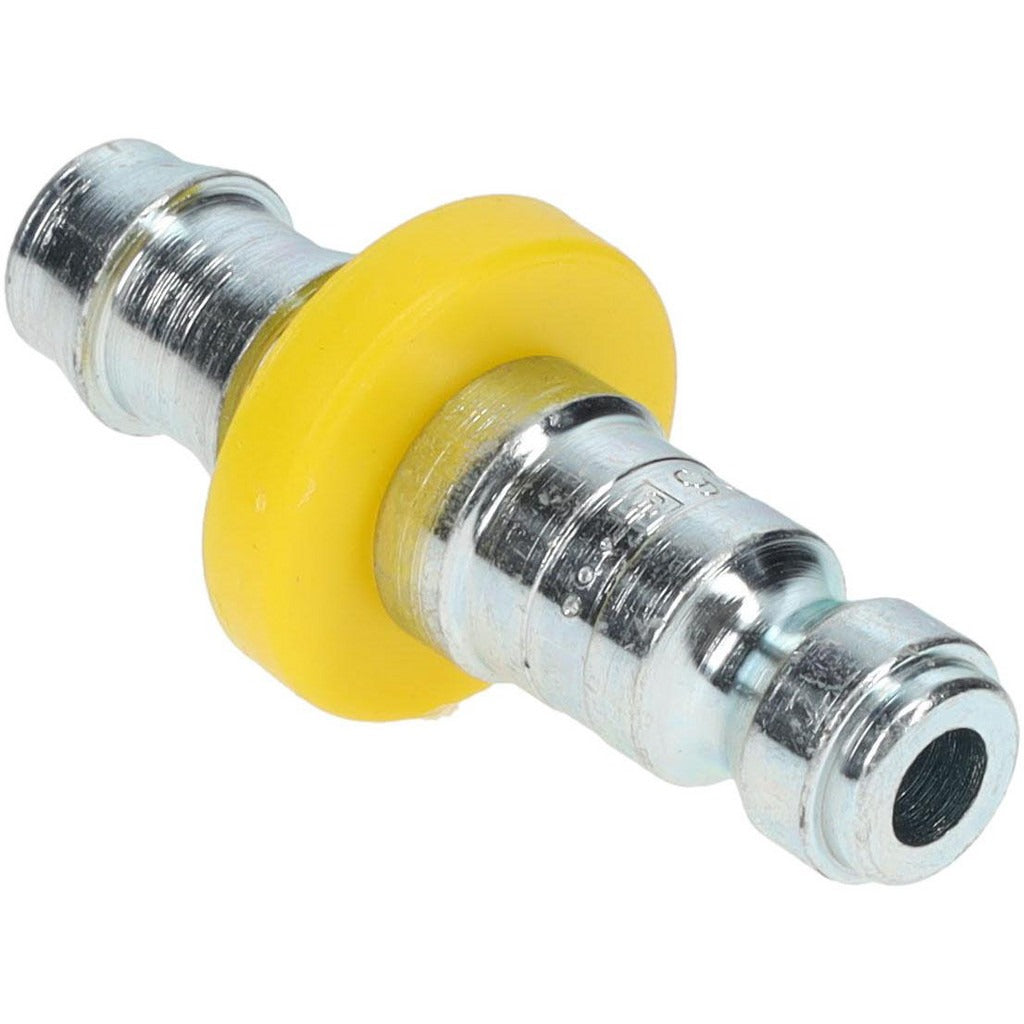

Parker 9CP Pneumatic Hose Coupling 1/4 in Tru-flate Steel

Product Description

The PARKER 9CP is a pneumatic hose coupling connector designed for compressed air lines requiring a Tru-Flate Automotive interchange connection. It features a 1/4 inch body diameter with a hose barb thread type and accepts hose with a 3/8 inch inside diameter. Built from steel with a zinc chromate finish, this connector is rated for a maximum working pressure of 300 psi and handles temperatures from -40 degrees F to 250 degrees F. The Series 10 design makes it a dependable fitting for industrial and automotive service shop air systems. Installation is performed by licensed HVAC technicians, automotive mechanics, and pneumatic system service professionals.

This coupling is suited for use in residential and light commercial compressed air systems, automotive service bays, and general-purpose pneumatic tool hookups. The hose barb connection style allows direct attachment to flexible air hose without threaded fittings on the hose end. It is commonly installed on air lines feeding pneumatic tools, inflation equipment, and blow-gun assemblies where a Tru-Flate Automotive interchange interface is required. The compact 1.98 inch overall length fits in tight installations with minimal clearance.

Key Features

• Tru-Flate Automotive interchange type for broad compatibility with automotive-style pneumatic accessories
• 300 psi maximum working pressure for standard compressed air service
• Operating temperature range of -40 degrees F to 250 degrees F
• Steel construction with zinc chromate finish for corrosion resistance
• Hose barb thread type accepts 3/8 inch inside diameter hose
• Compact 1.98 inch overall length for installations with limited space

Compatibility

Designed as an OEM-style replacement connector for compressed air systems using Tru-Flate Automotive interchange couplings with a 1/4 inch body diameter and hose barb connection to 3/8 inch inside diameter air hose.

Installation Notes

Depressurize the air system completely and disconnect the compressor before servicing any pneumatic coupling. Ensure hose inside diameter matches the 3/8 inch barb specification before installation. Secure the hose to the barb with an appropriate clamp per system pressure requirements. Inspect the coupling and hose for wear or damage before returning the system to service.
