Parker 95UFS85TBL020 Coiled Air Hose 5/16 in 20 Ft Mnpt

Product Description

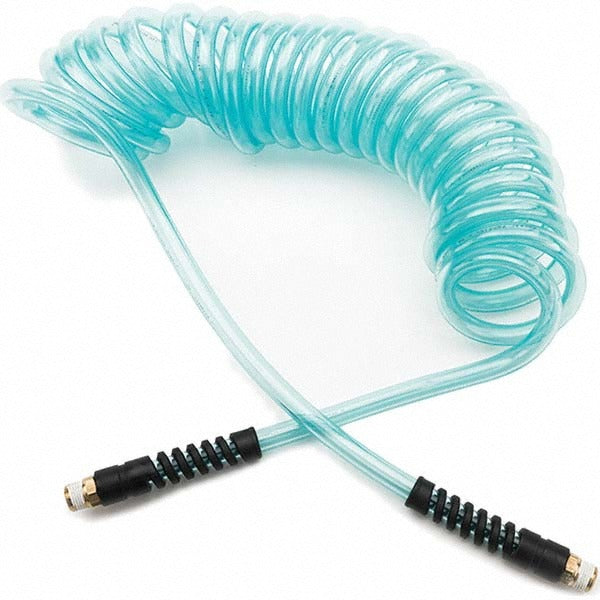

The PARKER 95UFS85TBL020 is a coiled, self-storing polyurethane air hose designed for use in compressed air service applications across automotive, industrial, and general trade environments. It features a 5/16-inch inside diameter and extends to a working length of 20 feet, retracting to a compact coil when not in use. The hose is rated for a maximum working pressure of 140 psi and handles temperatures from -40 degrees F up to 180 degrees F. Both ends are fitted with 3/8-inch MNPT swivel connections, allowing easy attachment without twisting the hose body. Licensed HVAC techs, mechanics, and service technicians will find this hose suited to bench-top and mobile service work.

This hose is well suited for light to medium-duty compressed air delivery in shop, service van, or field environments. The self-storing coil design keeps the work area clear and reduces tripping hazards. The transparent blue polyurethane construction allows visual inspection of the hose interior for blockages or contamination. The swivel fittings on both ends make connection and disconnection to standard pneumatic tools and air supply outlets straightforward without kinking the hose at the fitting.

Key Features

• Self-storing coil design retracts automatically to reduce clutter and tripping hazards
• 5/16-inch inside diameter, 1/2-inch outside diameter polyurethane construction
• 140 psi maximum working pressure for light to medium compressed air service
• Wide temperature range: -40 degrees F to 180 degrees F
• 3/8-inch MNPT swivel fittings on both ends allow connection without hose twisting
• Transparent blue color enables visual inspection of hose interior

Compatibility

Designed as a replacement or add-on coiled air hose for compressed air systems using standard 3/8-inch MNPT threaded connections in shop, garage, and field service applications.

Installation Notes

Shut off and bleed the compressed air supply before connecting or disconnecting this hose. Hand-tighten the swivel fittings first, then snug with a wrench — do not overtighten MNPT threads into brass or aluminum ports. Verify that the supply pressure does not exceed the 140 psi rating of the hose. Inspect the coil and fittings for cracks, abrasion, or leaks before each use.
