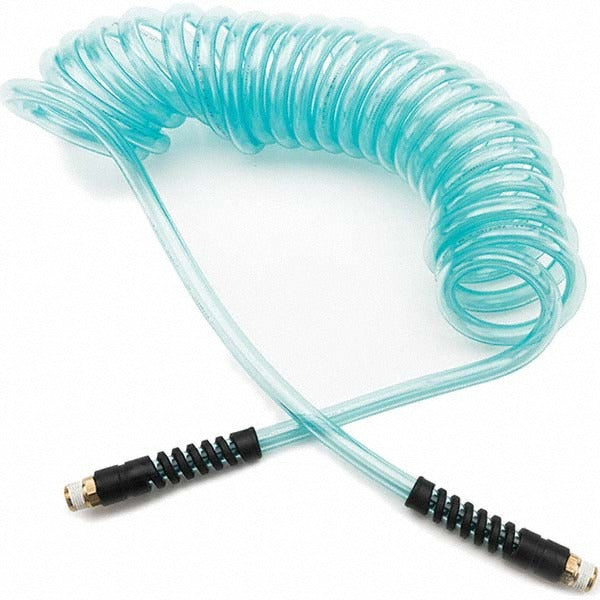

Parker 95UFS85TBL010 Coiled Air Hose 5/16 in 10 Ft Mnpt

Product Description

The PARKER 95UFS85TBL010 is a coiled self-storing polyurethane air hose designed for compressed air and fluid delivery in trade and industrial service environments. With a 5/16 inch inside diameter and a 10-foot working length, this hose retracts automatically to reduce clutter and trip hazards on the job. It is rated to 140 psi maximum working pressure and handles temperatures from -40 degrees F to 180 degrees F. The transparent blue polyurethane construction allows visual inspection of flow and resists abrasion, kinking, and UV degradation better than standard rubber hose. Both ends terminate in 3/8 inch MNPT swivel fittings, allowing connection without twisting the hose body. HVAC technicians, plumbers, and general mechanical contractors rely on this style of hose for air tool supply, blow-gun lines, and portable compressor drops.

This coiled hose is suited for light- to medium-duty compressed air service in both residential and commercial settings. Typical applications include air tool lines at service vans, portable compressor connections in mechanical rooms, and workbench drops in shop environments. The swivel MNPT fittings on both ends simplify connection to standard air fittings, manifolds, and quick-disconnect bodies without requiring the hose to rotate. Its compact coiled form stores easily in a tool bag or mounts on a retractable hose reel bracket.

Key Features

• Coiled self-storing design retracts to keep work areas clear and reduce hose tangles
• 140 psi maximum working pressure for standard compressed air service
• Wide temperature range: -40 degrees F to 180 degrees F
• Transparent blue polyurethane construction for abrasion resistance and visual flow inspection
• 3/8 inch MNPT swivel fittings on both ends eliminate hose twist during connection
• Lightweight at 0.5 pounds, suitable for portable and mobile service use

Compatibility

Designed as a replacement or supplemental coiled air hose for compressed air systems using 3/8 inch MNPT threaded connections. Confirm thread size and pressure rating of the existing system before installation.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, or mechanical contractors familiar with compressed air systems. Depressurize and bleed down the air supply line completely before disconnecting or installing any hose. Apply thread sealant tape to male NPT threads per standard practice, and hand-tighten fittings before applying final torque with an appropriately sized wrench. Do not exceed the rated 140 psi working pressure, and inspect the hose and fittings for leaks after pressurizing the system.
