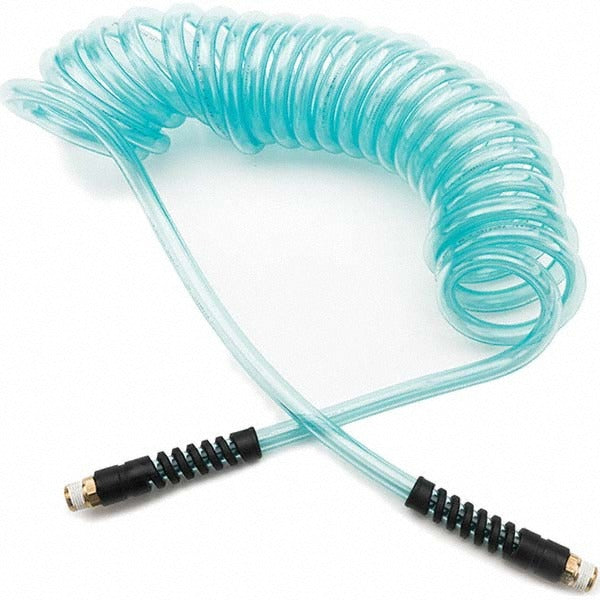

Parker 95UFS53TBL010 Coiled Hose 3/16 in Id 10 Ft Blue

Product Description

The PARKER 95UFS53TBL010 is a coiled, self-storing polyurethane air hose designed for pneumatic tool and equipment applications. Measuring 3/16 inches inside diameter and 10 feet in extended length, it delivers a maximum working pressure of 175 psi across a wide service temperature range of -40 degrees F to 180 degrees F. The blue polyurethane construction resists kinking and recoils automatically after each use, keeping work areas clear. Brass MNPT swivel fittings on both ends allow easy connection and rotation without twisting the hose body. This hose is suited for installation and service work by HVAC technicians, plumbers, and general maintenance professionals who need a compact, self-managing air supply line.

This coiled hose is well suited for light-duty pneumatic applications in residential and commercial service environments. The 10-foot extended length provides adequate reach for most bench-top and field service tasks. The swivel MNPT fittings on both ends — sized at 1/4 inch thread — allow fast connection to standard pneumatic fittings and tools without requiring the hose to be repositioned. The self-coiling design makes it practical for technicians working out of service vans or tool bags where hose management is a priority.

Key Features

• 3/16 inch inside diameter, 5/16 inch outside diameter polyurethane construction
• 175 psi maximum working pressure
• Service temperature range: -40 degrees F to 180 degrees F
• MNPT swivel x MNPT swivel brass fittings with 1/4 inch thread size
• Self-storing coiled design recoils automatically to reduce tangling
• Blue color for easy identification in multi-hose setups

Compatibility

Designed as a replacement or add-on coiled pneumatic hose compatible with standard 1/4 inch MNPT pneumatic fittings and air tool connections in light-duty service applications.

Installation Notes

Depressurize the air supply line fully before connecting or disconnecting this hose. Verify that all existing fittings and tools are rated at or above 175 psi before use. Swivel fittings should be hand-tightened first, then snugged with a wrench — do not overtighten brass fittings into threaded ports. Inspect the hose and fittings for damage before each use, and replace if cracking, abrasion, or fitting deformation is observed.
