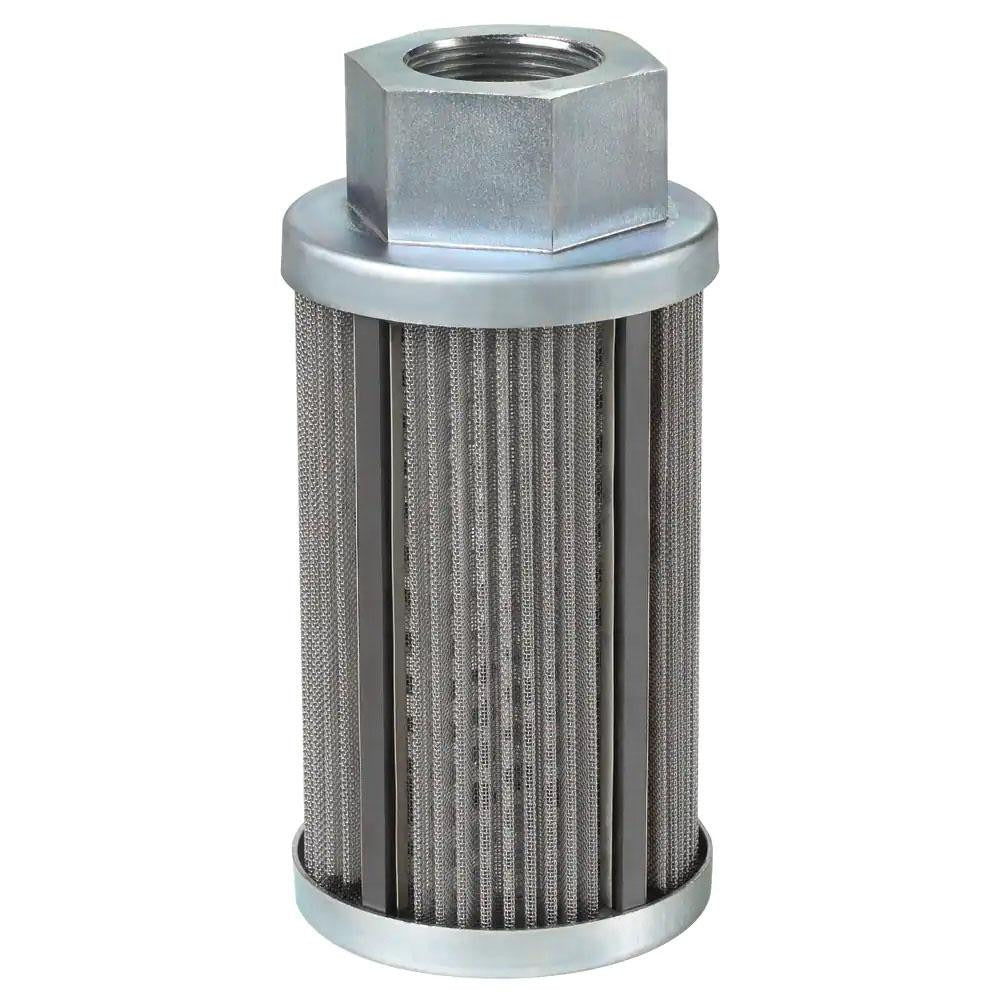

Parker 936549 Magnetic Suction Strainer 35 Gpm Npt

Product Description

The PARKER 936549 is a magnetic suction strainer designed to protect hydraulic and fluid system components from particulate contamination and ferrous debris. Rated for a maximum flow rate of 35 GPM (135 LPM), it features a 30-mesh stainless steel screen and an integrated magnet to capture fine ferrous particles that a screen alone would pass. The 1-1/2 inch NPT male/female threaded connections allow inline installation in suction lines on hydraulic power units and fluid transfer systems. At 2.88 pounds and 7.39 inches in length with a 3.53-inch diameter, it is sized for industrial and mobile hydraulic applications. Licensed hydraulic technicians and fluid power specialists are the primary installers.

This strainer is suited for use in suction-side hydraulic circuits where pump protection is required. The dual magnetic and mesh filtration approach makes it appropriate for systems operating with fluids that carry both particulate and ferrous contamination. It handles fluid temperatures up to 195 degrees F (90 degrees C), making it compatible with a range of petroleum-based and synthetic hydraulic fluids found in industrial machinery, mobile equipment, and hydraulic power unit assemblies.

Key Features

• Integrated magnet captures ferrous particles in addition to mechanical mesh filtration
• 30-mesh stainless steel screen for durable, corrosion-resistant straining
• 35 GPM maximum flow rate with low restriction on suction lines
• 1-1/2 inch NPT male/female threaded connections for standard inline installation
• Rated to 195 degrees F maximum working temperature
• Compact 7.39-inch length and 3.53-inch diameter for space-constrained installations

Compatibility

Designed as an OEM-style replacement or new-installation suction strainer for hydraulic and fluid power systems requiring 1-1/2 inch NPT threaded connections and a 30-mesh screen with magnetic filtration capability.

Installation Notes

Installation should be performed by a qualified hydraulic technician or fluid power specialist. Depressurize and drain the hydraulic system completely before removing or installing any suction-side components. Ensure NPT threads are wrapped with appropriate thread sealant tape and that the strainer is oriented to allow access for periodic inspection and cleaning. Do not exceed the rated flow or temperature limits to avoid screen bypass or seal degradation.
