Parker 931984Q ParFit Interchange and Parker Replacement Element

Product Description

Parker with PartsGopher offers the ParFit Interchange and Parker Replacement Element with MPN 931984Q. This filter is designed to meet the exact standards of Parker hydraulic filters, ensuring efficiency in hydraulic and lube oil filtration systems.

• 5 micron absolute filtration for high-performance needs.
• Constructed with multilayer fiberglass and epoxy coated mesh.
• Compatible with a wide range of hydraulic applications.

Product Highlights

The ParFit element minimizes inventory while providing reliable filtration. It is a direct replacement for Parker parts.

Product Information

Standard Information

• Manufacturer: Parker
• Part Number: 931984Q

Technical Specifications

• Media: 5 Micron Absolute
• Media Type: Microglass
• Efficiency βx(C) ≥ 200: 5 µ
• Efficiency βx(C) ≥ 1000: 7 µ
• Collapse Pressure (bar): 24.1 bar
• Collapse Pressure (psi): 350 psi
• Seals: CR: Neoprene
• Series: ParFit

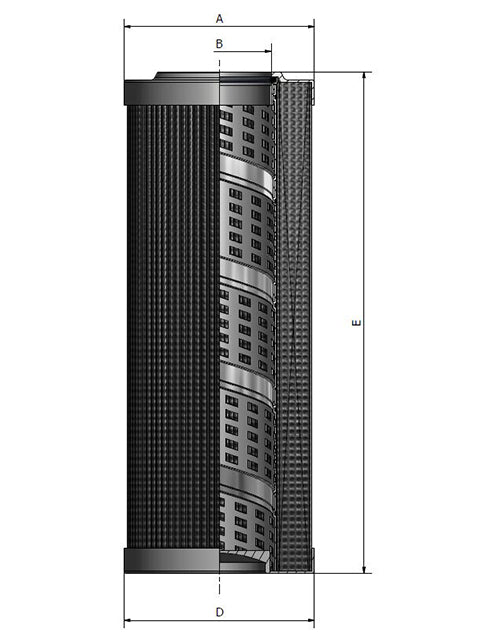

• A Dimension: 1.772 in (45 mm)
• B Dimension: 1 in (25.4 mm)
• D Dimension: 1.772 in (45 mm)
• E Dimension: 4.5 in (114.3 mm)
• Top Endcap Material: Glass reinforced nylon
• Bottom Endcap Material: Glass reinforced nylon
• Inner Support Cylinder Material: Steel tin plated
• Glue Side Seam Adhesive: Epoxy
• Glue Endcaps Adhesive: Epoxy
• Parker Division: Hydraulic Filter
• Parker Group: Filtration
