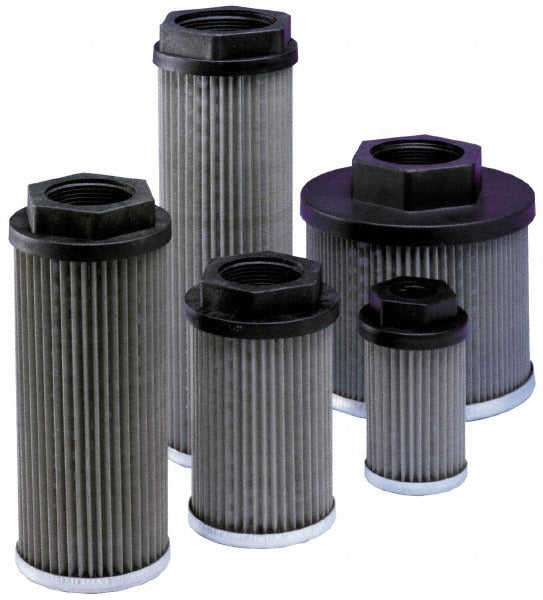

Parker 930156 Hydraulic Filter Element 20 Micron

Product Description

The PARKER 930156 is a hydraulic filter element rated at 20 microns, designed to remove particulate contamination from hydraulic fluid circuits. It measures 1.63 inches inner diameter and 3.94 inches outer diameter, fitting into standard hydraulic filter housings used across industrial and mobile equipment applications. Installation is performed by hydraulic technicians and millwrights during routine service intervals or when system pressure differential indicates a plugged element. The 20-micron rating provides a balance between particulate capture and flow efficiency suitable for moderate-cleanliness hydraulic systems.

This element is used in hydraulic power units, mobile equipment hydraulic systems, and industrial machinery where periodic filter element replacement is required to maintain fluid cleanliness and protect downstream components such as pumps, valves, and actuators. It is a direct replacement for Schroeder part number KW, making it a drop-in option for systems already using that element. The compact dimensions suit a range of filter housing sizes commonly found in both stationary and mobile hydraulic installations.

Key Features

• 20-micron filtration rating for effective particulate removal in hydraulic circuits
• 1.63 inches inner diameter and 3.94 inches outer diameter for broad housing compatibility
• Direct replacement for Schroeder part number KW
• Lightweight at 1.5 pounds for easy handling during service
• Element-style construction for use in serviceable filter housings

Compatibility

Serves as a direct replacement for Schroeder part number KW. Designed as an OEM-style replacement element for hydraulic filter housings accepting a 1.63 inches ID by 3.94 inches OD element.

Installation Notes

Hydraulic filter element replacement is typically performed by a qualified hydraulic technician or mechanic. Depressurize and de-energize the hydraulic system completely before opening any filter housing. Inspect the housing O-ring or seal and replace it if worn or damaged before installing the new element. Dispose of used elements in accordance with local regulations for hydraulic fluid-contaminated materials.
