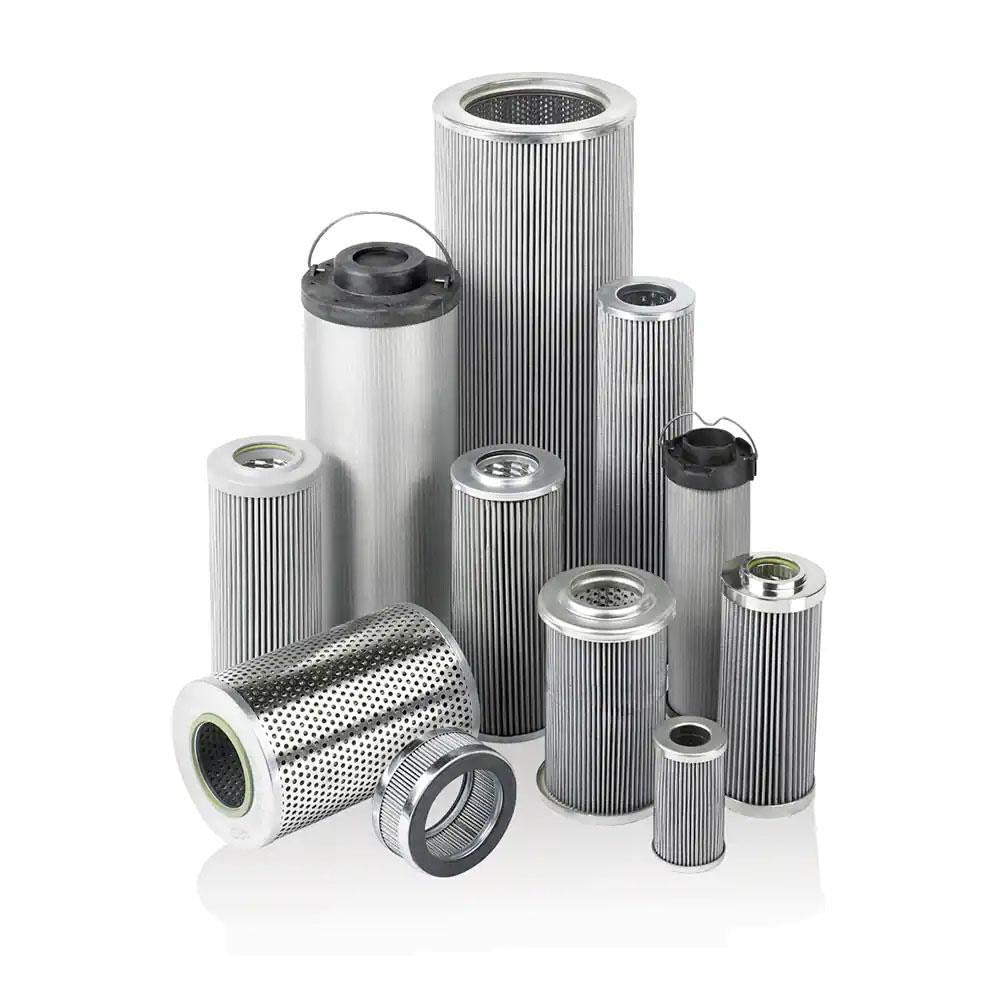

Parker 927176Q Hydraulic Filter Element 2 Micron Microglass

Product Description

The PARKER 927176Q is a hydraulic filter element designed to remove oil contaminants from hydraulic fluid circuits. Constructed with microglass filter media, it achieves a 2-micron filtration rating, making it well suited for systems that require tight contamination control. The element measures 1.7 inches inside diameter and 3.14 inches outside diameter, and weighs 2.4 pounds. It is installed by hydraulic system technicians in industrial, mobile, and fluid power applications where maintaining clean fluid is critical to component longevity and system performance.

This filter element fits hydraulic systems requiring a 2-micron element with the specified dimensional envelope. It serves as a direct replacement for elements from multiple manufacturers including Hydac, Hycon, Pti, Fairey Arlon, Pall, Donaldson, Stauff, Schroeder, and Vickers, covering a wide range of OEM filter housings already installed in the field. Typical applications include industrial machinery, mobile equipment hydraulics, and fluid power systems where oil cleanliness directly affects valve and pump service life.

Key Features

• 2-micron filtration rating for fine contaminant removal from hydraulic oil
• Microglass filter media construction for high dirt-holding capacity and flow efficiency
• 1.7 inches inside diameter and 3.14 inches outside diameter for broad housing compatibility
• Direct cross-reference replacement for Hydac, Pall, Donaldson, Schroeder, Vickers, and other OEM elements
• Removes oil contaminants from hydraulic fluid circuits
• Single-unit packaging with no minimum order multiplier requirement

Compatibility

This element is a direct replacement for the following OEM part numbers: Hydac H9601/8-003BH, Hycon H9601/8-003BH, Pti HF3-030-GU-B, Fairey Arlon R961-H-0803A, Pall HC9601FDP8H, Donaldson P167185, Stauff SP070F03B, Schroeder 8TSX3, and Vickers V6024B2H03.

Installation Notes

Hydraulic filter elements are serviced by qualified hydraulic system technicians. Before replacing this element, relieve all system pressure and depressurize the hydraulic reservoir per the equipment manufacturer's service procedure. Use appropriate fluid-containment equipment to capture residual hydraulic oil during element removal. Inspect the filter housing seal surfaces and replace any O-rings or gaskets as needed before installing the new element.
