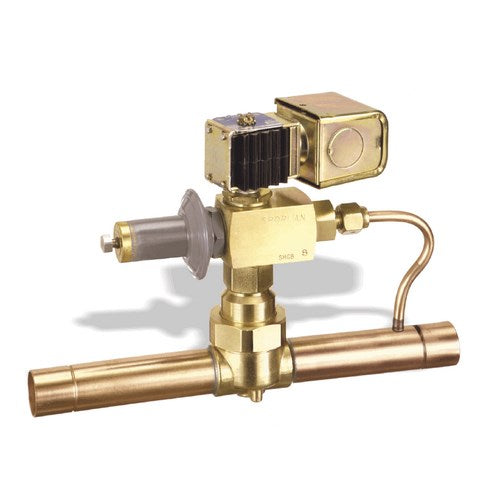

Parker 904010 Hot Gas Discharge Bypass Valve

Product Description

The Parker 904010 Hot Gas Discharge Bypass Valve is engineered to limit the minimum evaporating pressure during periods of low load. This valve is essential for preventing coil icing and ensuring proper compressor operation, maintaining suction pressures within the specified operating range.

• Limits minimum evaporating pressure during low load conditions.
• Features 7/8 ODF inlet and outlet connections.
• Designed for pressure ratings from 0 to 100 PSI.

Product Highlights

This valve supports efficient cooling system performance by regulating pressure effectively.

Product Information

Standard Information

• Brand: Parker Hannifin Corporation
• Manufacturer Part Number: 904010

Technical Specifications

• Pressure Regulating Valve Type: Hot Gas Bypass Regulating Valves
• Valve Body Type: SHGB
• Port Size: 0.43 inches
• Pressure Range: 0 to 100 PSI
• Equalizer Method: Externally Equalized
• Evaporator Equalizer Size: 1/4 SAE
• Inlet Connection: 7/8 ODF
• Maximum Working Pressure: 450 PSI
• Outlet Connection: 7/8 ODF
• Seat Material: Synthetic to Metal
• Solenoid Coil Required: MKC-1
• Valve Body Material: Brass
• Valve Connection Material: Copper
• Weight: 3.3 lbs
