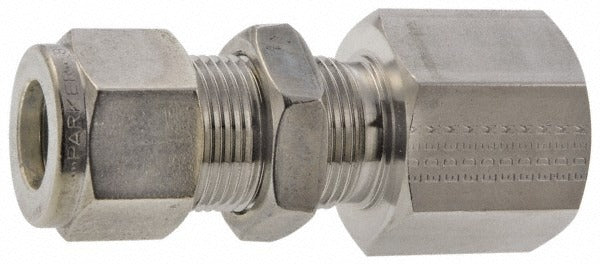

Parker 8FBC6N-316 Bulkhead Female Connector 3/8-18 Npt

Product Description

The PARKER 8FBC6N-316 is a stainless steel compression tube bulkhead female connector designed to pass tubing through a panel or bulkhead wall while maintaining a secure, leak-resistant connection. The fitting transitions from a compression-style tube connection on one end to a female NPT thread on the other, with a 3/8-18 thread size. Rated to 6300 psi maximum working pressure and capable of handling temperatures from -425 degrees F to 1200 degrees F, this fitting is built for demanding industrial, HVAC, and process piping applications. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This bulkhead connector is suited for applications where a fluid or gas line must penetrate a panel, enclosure, or partition. Its stainless steel construction makes it appropriate for corrosive environments, high-purity systems, cryogenic service, and high-temperature process lines. The compression-by-FNPT end configuration allows direct connection to NPT-threaded ports on equipment or valves while securing tubing on the field side without soldering or welding.

Key Features

• Stainless steel body for corrosion resistance and compatibility with aggressive media
• 6300 psi maximum working pressure for high-pressure system use
• Wide temperature range: -425 degrees F to 1200 degrees F
• Compression x FNPT end connections eliminate the need for soldering or welding
• Bulkhead design allows tubing to pass through panels or enclosures cleanly
• 3/8-18 NPT thread size for standard pipe fitting compatibility

Compatibility

Designed as an OEM-style compression bulkhead fitting for use in industrial, process, and instrumentation tubing systems that require NPT-threaded panel penetrations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes. Depressurize and isolate the system completely before removing any existing fittings or installing this connector. Apply appropriate thread sealant to the NPT threads per the sealant manufacturer guidance and the requirements of the fluid service. Do not overtighten the compression nut; follow the fitting manufacturer assembly instructions for proper tube insertion depth and nut engagement.
