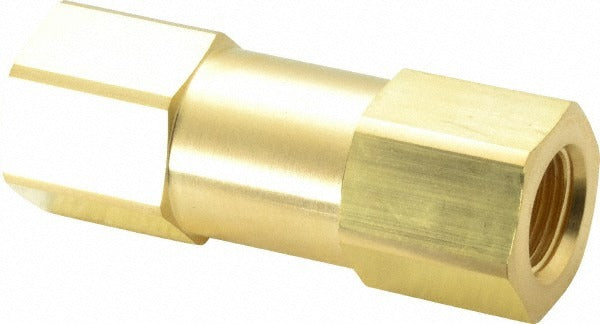

Parker 8F-C8L-1-BN-B Check Valve 1/2 in Fnpt Brass 3000 Psi

Product Description

The PARKER 8F-C8L-1-BN-B is an inline check valve designed to allow one-directional flow and prevent backflow in fluid and pneumatic systems. Sized at 1/2 inch with female NPT connections on both ends, it installs directly into threaded pipe runs without additional fittings. The brass body withstands a maximum working pressure of 3000 psi, making it suitable for demanding hydraulic and fluid-power applications. A nitrile rubber seal provides reliable shutoff across a range of compatible media, while the stainless steel spring maintains consistent cracking performance at a 1.00 psi crack pressure. This valve is typically installed by licensed plumbers, HVAC technicians, or fluid-power technicians in commercial and industrial piping systems.

This check valve is well suited for inline installation in compressed air, hydraulic, water, and compatible fluid lines where backflow prevention is required. The FNPT x FNPT end connections make it a straightforward threaded replacement or new-installation fitting in 1/2 inch pipe systems. Its compact inline design accommodates tight installation spaces in both residential mechanical rooms and commercial equipment installations. The combination of a brass body and stainless steel spring supports use in both wet and dry service environments.

Key Features

• Inline check valve prevents backflow in threaded pipe systems
• 1/2 inch FNPT x FNPT connections for direct threaded installation
• Brass body rated to 3000 psi maximum working pressure
• 1.00 psi crack pressure for low-resistance flow initiation
• Nitrile rubber seal compatible with a broad range of fluid media
• Stainless steel spring for corrosion resistance and long service life

Compatibility

Designed as an OEM-style replacement or new-installation check valve for 1/2 inch threaded pipe systems requiring FNPT x FNPT inline backflow prevention.

Installation Notes

Installation should be performed by a qualified plumber or fluid-power technician in accordance with applicable local codes and the International Plumbing Code where required. Depressurize and isolate the line completely before removing any existing valve or fitting. Apply thread sealant or PTFE tape to male threads per standard practice, and confirm flow-direction orientation before tightening. Do not exceed the rated 3000 psi maximum working pressure for this valve.
