Parker 881-24 Hydraulic Hose 1-1/2 in Id 150 Psi

Product Description

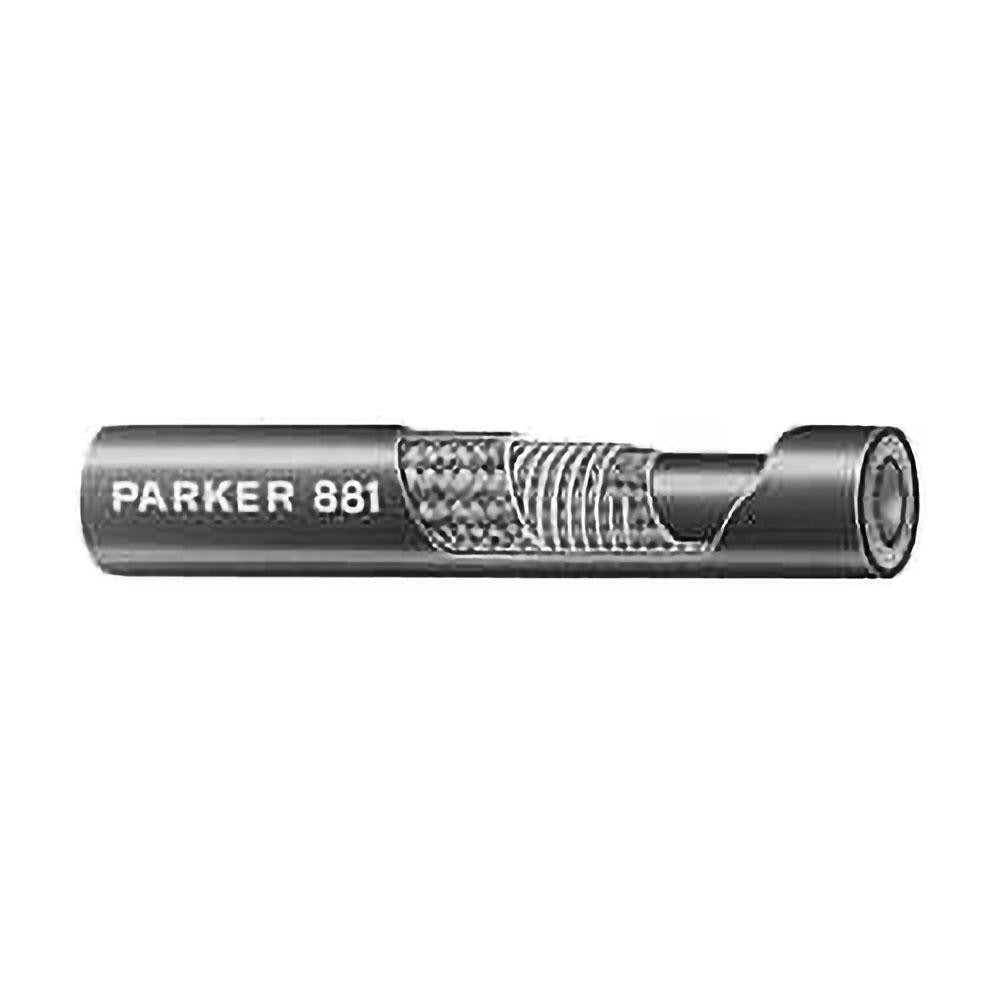

The PARKER 881-24 is a large-bore hydraulic suction and return hose built for low-pressure fluid transfer in mobile and industrial hydraulic systems. Constructed with a synthetic rubber tube and cover, this hose carries a 150 psi working pressure rating and handles operating temperatures from -40 degrees F to 257 degrees F. The 881-24 designation refers to the -24 dash size, corresponding to a 1-1/2 inch inside diameter. This hose is sold in 1-foot increments from a 150-foot coil, with a 5-foot minimum cut length per order. Licensed HVAC technicians, hydraulic system mechanics, and industrial maintenance technicians are the typical installers.

The PARKER 881 Series is designed for use in hydraulic suction and return line applications where a large-diameter, flexible hose is needed at lower operating pressures. It is well suited for mobile equipment hydraulics, agricultural machinery, and industrial fluid conveyance where system pressures stay within the 150 psi working pressure range. The black synthetic rubber construction resists weathering, abrasion, and exposure to hydraulic fluid. This hose meets SAE J1942 and SAE J517 100R4 standards, making it appropriate for regulated hydraulic circuit installations.

Key Features

• 1-1/2 inch inside diameter (-24 dash size) for high-volume, low-pressure fluid transfer
• 150 psi working pressure rating suitable for suction and return line service
• Operating temperature range of -40 degrees F to 257 degrees F
• Synthetic rubber construction resists abrasion, weathering, and hydraulic fluid exposure
• Meets SAE J1942 and SAE J517 100R4 standards
• Sold by the foot in 1-foot increments with a 5-foot minimum cut length from a 150-foot coil

Compatibility

Designed as an OEM-style replacement or new-installation hose for hydraulic suction and return line circuits requiring a -24 dash size, 1-1/2 inch ID, low-pressure hose meeting SAE J517 100R4 specifications.

Installation Notes

Installation should be performed by a qualified hydraulic technician. Depressurize and drain the hydraulic system completely before removing or installing any hose assembly. Inspect fittings and clamps for compatibility with the 1-1/2 inch ID bore before assembly. Follow SAE J1942 guidelines for hose routing, bend radius, and securing to prevent chafing or kinking during operation.
