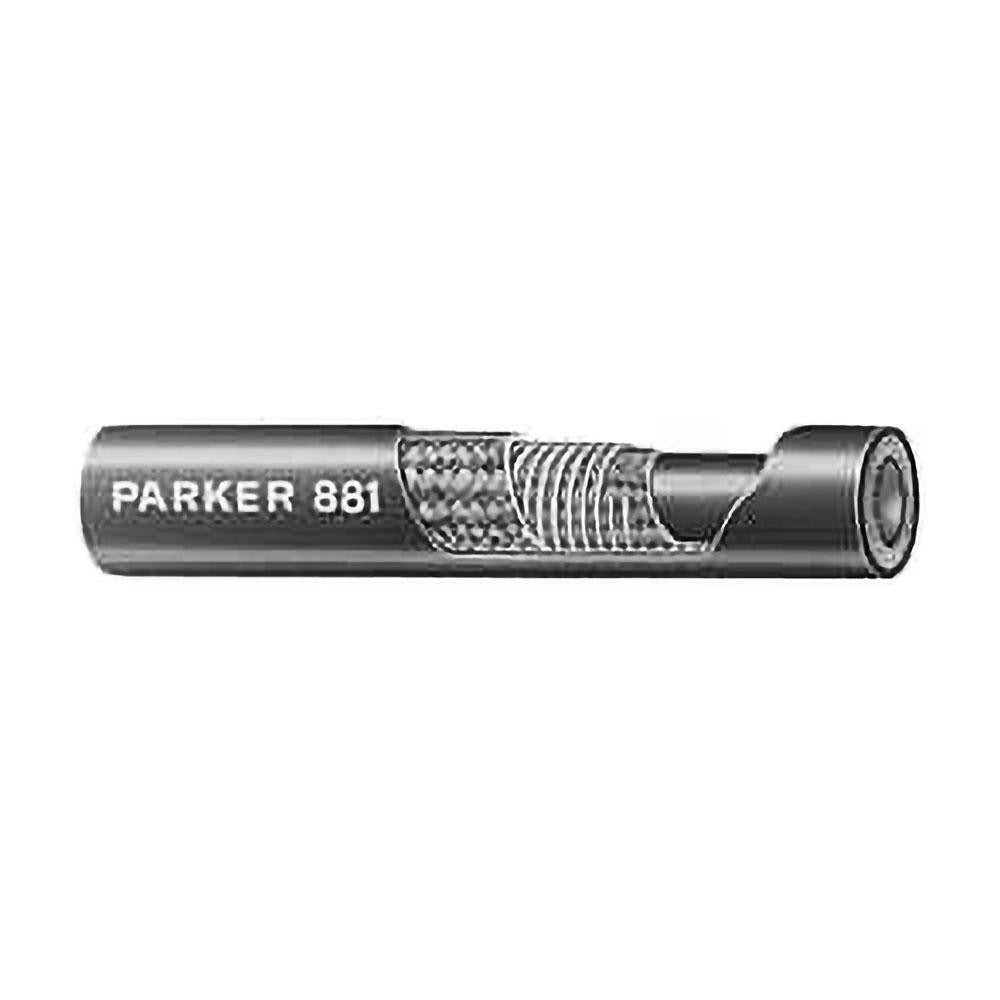

Parker 881-12 Hydraulic Hose 3/4 in Id 300 Psi Sae J517 100R4

Product Description

The PARKER 881-12 is a Series 881 hydraulic suction and return hose built for low-to-medium pressure hydraulic systems. It features a 3/4 inch (ID) bore and is rated to 300 psi working pressure, making it a dependable choice for return lines, suction lines, and low-pressure fluid transfer applications. The hose body is constructed of synthetic rubber and is rated for service from -40 degrees F to 257 degrees F. It meets SAE J1942 and SAE J517 100R4 standards. Fluid power technicians and hydraulic system mechanics are the primary installers. This hose is sold in 1-foot increments with a 10-foot minimum cut length per order.

The PARKER 881-12 is suited for mobile and industrial hydraulic systems where flexible routing is required for suction or return circuits. The 50-foot total coil length provides enough material for multi-run installations or shop-stocked service inventory. Its synthetic rubber construction resists petroleum-based hydraulic fluids across a wide temperature range, supporting both indoor and outdoor equipment applications.

Key Features

• 3/4 inch inner diameter for -12 hose size applications
• 300 psi rated working pressure for low-to-medium pressure circuits
• Synthetic rubber construction compatible with petroleum-based hydraulic fluids
• Temperature range: -40 degrees F to 257 degrees F
• Meets SAE J1942 and SAE J517 100R4 standards
• Sold in 1-foot increments with a 10-foot minimum cut length; 50-foot total coil

Compatibility

Designed as an OEM-style replacement or shop-stock hose for low-to-medium pressure hydraulic suction and return line applications in mobile and industrial equipment.

Installation Notes

Installation should be performed by a qualified fluid power technician or hydraulic system mechanic. Depressurize and isolate the hydraulic circuit completely before cutting or connecting hose. Use the appropriate hose cutting tool to ensure a clean, square cut, and verify fitting compatibility before assembly. Follow the equipment manufacturer and SAE J517 guidelines for minimum bend radius to avoid kinking or premature hose failure.
