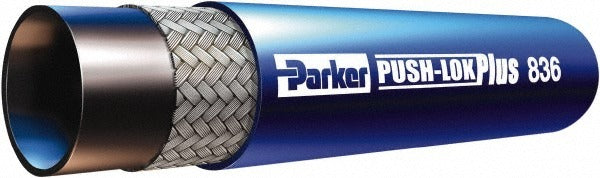

Parker 836-12-RL-CTL Push-on Air Hose 3/4 in 300 Psi Ctl

Product Description

The PARKER 836-12-RL-CTL is a push-on style air hose designed for compressed air distribution in industrial, automotive, and mechanical service environments. Built from blue synthetic rubber, it features a 3/4 inch inside diameter and a 1.030 inch outside diameter. The hose is rated to 300 psi working pressure and handles a temperature range of -55 degrees F to 302 degrees F, making it suitable for both cold-storage and high-heat service bays. It is sold in cut-to-length increments with a 10-foot minimum cut and is sourced from a 200-foot coil. Installation is typically performed by maintenance mechanics, industrial pipefitters, or HVAC technicians building shop air systems.

This hose is used in compressed air plumbing where flexible routing is required between hard-pipe drops and tool connections or equipment inlets. The push-on end design eliminates the need for hose clamps at compatible fittings, simplifying assembly in tight or frequently reconfigured runs. It is well suited to both fixed shop air installations and portable service setups. No end connections are included; fittings must be sourced separately and matched to the 3/4 inch ID bore.

Key Features

• Push-on design for tool-free attachment to compatible barbed fittings
• 3/4 inch inside diameter for high-volume air flow in demanding service environments
• 300 psi working pressure rating supports heavy shop air and pneumatic tool use
• Temperature range of -55 degrees F to 302 degrees F suits cold and high-heat applications
• Blue synthetic rubber construction for flexibility and resistance to abrasion
• Cut-to-length format minimizes waste on custom-length runs

Compatibility

Designed as a cut-to-length replacement or new-installation hose for compressed air systems using push-on barbed fittings sized for 3/4 inch ID hose. No specific model compatibility was provided in the product data.

Installation Notes

Installation is typically performed by licensed pipefitters, industrial mechanics, or qualified HVAC technicians. Depressurize and lock out the air supply before cutting or connecting hose sections. A sharp hose cutter or utility knife should be used to ensure a clean, square cut at the connection end for proper push-on seating. Verify that all barbed fittings are rated to at least the system working pressure before pressurizing the assembly.
