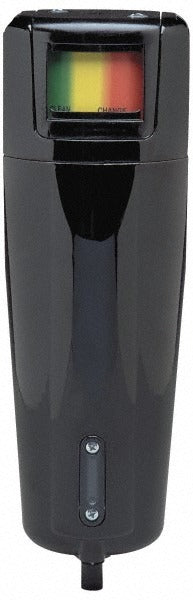

Parker 8312N-1A1-DX Oil Water Filter Separator 670 Cfm

Product Description

The PARKER 8312N-1A1-DX is a compressed air oil water filter and separator designed to remove dust, oil, particulate, and water from compressed air lines. It uses an automatic drain to discharge collected contaminants without manual intervention, making it well suited for continuous-duty installations where downtime for maintenance is not practical. The unit handles up to 670 CFM at a maximum working pressure of 250 psi and is rated for operating temperatures up to 130 degrees F. Connections are 1-1/2 inch NPT. Licensed HVAC technicians, industrial pipefitters, and mechanical contractors are the typical installers for this class of equipment.

This filter separator is used in industrial and commercial compressed air systems where clean, dry air is required downstream of the compressor. Typical applications include air-operated tools, pneumatic controls, spray finishing equipment, and HVAC pneumatic control systems. The auto drain feature is particularly useful in high-duty-cycle environments where moisture and oil accumulation are continuous concerns. The unit is sized for mid-to-large compressed air systems given its 670 CFM flow capacity and 1-1/2 inch NPT port size.

Key Features

• 670 CFM flow capacity supports mid-to-large compressed air systems
• Automatic drain removes collected water, oil, and particulate without manual service
• 1-1/2 inch NPT end connections for standard pipe thread installation
• 250 psi maximum working pressure rated for high-pressure compressed air service
• Rated to 130 degrees F maximum operating temperature
• Removes dust, oil, particulate, and water from compressed air streams

Compatibility

Designed as an OEM-style inline filter separator for compressed air piping systems with 1-1/2 inch NPT threaded connections operating within the rated pressure and temperature limits of this unit.

Installation Notes

Installation should be performed by a qualified pipefitter or mechanical contractor familiar with compressed air system piping. Depressurize and lock out the compressed air system before installing or servicing this unit. Apply thread sealant appropriate for compressed air service to all NPT connections and torque fittings per standard pipefitting practice. Verify that system operating pressure and temperature do not exceed the rated limits of this separator before commissioning.
