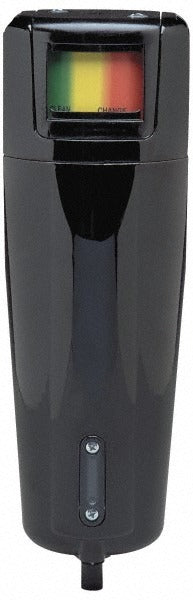

Parker 8208N-1A1-DX Oil Water Filter Separator 380 Cfm

Product Description

The PARKER 8208N-1A1-DX is a compressed air oil-water filter and separator designed to remove dust, oil, particulate, and water contamination from compressed air lines. It features an automatic drain and 1-inch NPT end connections, handling up to 380 CFM at a maximum working pressure of 250 psi. The unit stands 13 inches high and 4 inches wide, and weighs 8 pounds. This separator is installed by licensed pipefitters, industrial mechanics, and HVAC technicians in facilities where compressed air quality is critical to downstream equipment and processes.

This filter-separator is suited for commercial and industrial compressed air systems operating up to 130 degrees F. It fits into mainline or branch-line positions wherever oil, water, and particulate contamination must be controlled before air reaches tools, pneumatic controls, or process equipment. The automatic drain eliminates manual service intervals, making it appropriate for continuous-duty installations where maintenance access is limited or infrequent.

Key Features

• Handles up to 380 CFM airflow capacity
• Maximum working pressure of 250 psi
• 1-inch NPT end connections for standard threaded piping
• Automatic drain eliminates manual draining requirement
• Rated for operation up to 130 degrees F
• Removes dust, oil, particulate, and water from compressed air

Compatibility

Designed as an OEM-style replacement or direct installation separator for compressed air systems with 1-inch NPT threaded connections rated to 250 psi or below.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial mechanic. Depressurize and lock out the compressed air system before removing or installing any inline component. Ensure NPT threads are properly sealed with thread sealant appropriate for compressed air service. Verify that system operating pressure and temperature do not exceed the rated maximums of this unit before returning the system to service.
