Parker 8208N-1A1-BX Oil Water Filter Separator 77 Cfm

Product Description

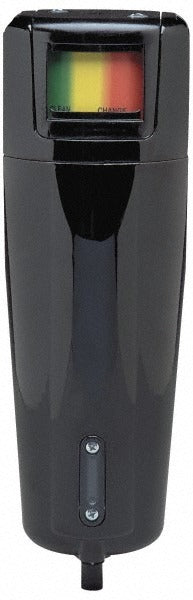

The PARKER 8208N-1A1-BX is a compressed air oil water filter separator designed to remove dust, oil, particulate, and liquid water from compressed air systems. It uses an automatic drain to discharge collected contaminants without manual intervention, making it well suited for continuous-duty installations where maintenance access is limited. The unit handles up to 77 CFM at a maximum working pressure of 250 psi and a maximum operating temperature of 130 degrees F. Connections are 1-inch NPT. Licensed HVAC technicians, industrial maintenance mechanics, and plumbing contractors install this type of separator to protect downstream equipment from contamination.

This filter separator is appropriate for light commercial and industrial compressed air applications where clean, dry air is required at the point of use or at equipment inlets. Typical installations include air compressor outlet lines, pneumatic tool supply drops, spray finishing systems, and instrumentation air headers. It handles four common contaminant types — dust, oil aerosols, particulate solids, and liquid water — making it a single-unit solution for general compressed air cleanup where a dedicated dryer is not installed.

Key Features

• Automatic drain removes collected liquid without manual service intervals
• 77 CFM flow capacity supports moderate to high-demand compressed air circuits
• 250 psi maximum working pressure rated for standard industrial compressor systems
• 1-inch NPT end connections for direct inline installation
• Removes dust, oil, particulate, and liquid water in a single stage
• Compact footprint at 13 inches high and 4 inches wide

Compatibility

Designed as an OEM-style inline filter separator for compressed air systems with 1-inch NPT piping operating within the rated pressure and temperature envelope.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air piping practices. Depressurize and lock out the air supply before installation or service. Apply thread sealant to NPT connections per the fitting manufacturer recommendation and verify no leaks at working pressure before returning the system to service. Confirm that system operating pressure and temperature do not exceed the rated maximums before commissioning.
