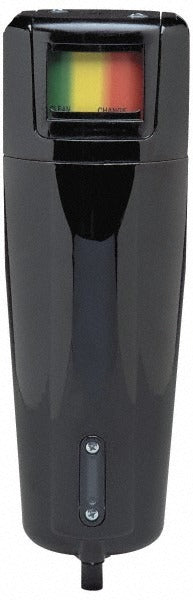

Parker 8206N-1A1-DX Oil Water Filter Separator 259 Cfm

Product Description

The PARKER 8206N-1A1-DX is a compressed air oil-water filter separator designed to remove dust, oil, particulate, and liquid water from compressed air lines. It handles up to 259 CFM at a maximum working pressure of 250 psi, making it suited for industrial and commercial pneumatic systems. The unit features an automatic drain that expels collected contaminants without manual intervention, reducing maintenance downtime. Connections are 3/4-inch NPT. At 13 inches tall and 4 inches wide, it is compact enough for most inline installations. Licensed HVAC, plumbing, and mechanical contractors install this type of separator as part of a complete compressed air treatment train.

This separator is intended for use in compressed air systems where contamination control is critical. Typical applications include pneumatic tool lines, spray finishing systems, instrumentation supply lines, and general plant air distribution. It is rated for continuous operation up to 130 degrees F, making it appropriate for standard industrial environments. The automatic drain eliminates the need for timed manual blowdown, which is particularly useful in high-cycle or unattended systems. The 3/4-inch NPT end connections make it compatible with standard iron and brass pipe fittings found in most compressed air installations.

Key Features

• Rated for 259 CFM flow capacity for high-demand compressed air applications
• 250 psi maximum working pressure suits most industrial pneumatic systems
• Automatic drain removes collected oil, water, and particulate without manual operation
• 3/4-inch NPT end connections integrate with standard pipe and fittings
• Maximum operating temperature of 130 degrees F for standard plant environments
• Compact footprint at 13 inches tall and 4 inches wide for inline installation

Compatibility

Designed as an OEM-style inline separator for compressed air systems using 3/4-inch NPT piping, rated to 250 psi and 259 CFM. Suitable for industrial, commercial, and light manufacturing compressed air treatment applications.

Installation Notes

Installation should be performed by a qualified mechanical or compressed air systems technician. Depressurize and lock out the air supply before making any connections or performing service. Ensure all NPT threads are properly sealed with thread sealant rated for compressed air service. Verify that system pressure and flow do not exceed the rated maximums before returning the line to service.
