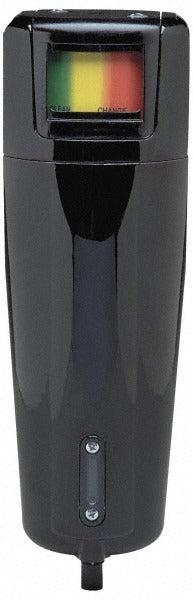

Parker 8206N-1A1-BX Oil Water Filter Separator 70 Cfm

Product Description

The PARKER 8206N-1A1-BX is a compressed air oil-water filter and separator designed to remove dust, oil, particulate, and liquid water from compressed air lines. It handles up to 70 CFM at a maximum working pressure of 250 psi and a maximum operating temperature of 130 degrees F. The unit features an automatic drain, which eliminates the need for manual drain cycles and reduces maintenance time on active systems. Connections are 3/4 inch NPT, making it compatible with standard threaded compressed air piping. This type of unit is installed by HVAC technicians, industrial maintenance personnel, and pipefitters in both light commercial and industrial compressed air systems.

This filter-separator is suited for inline installation on compressed air distribution systems where contamination control is critical. Typical applications include protecting downstream pneumatic tools, valves, actuators, and instrumentation from oil aerosols, particulate, and entrained water. The auto-drain feature makes it especially practical in high-duty or unattended installations where manual draining is not feasible. The unit measures 13 inches high and 4 inches wide, fitting in standard compressed air filter station configurations.

Key Features

• Removes dust, oil, particulate, and liquid water from compressed air streams
• 70 CFM flow capacity for light commercial and industrial applications
• 250 psi maximum working pressure
• Automatic drain eliminates manual maintenance intervals
• 3/4 inch NPT end connections for standard threaded piping integration
• Compact footprint at 13 inches high and 4 inches wide

Compatibility

Designed as an OEM-style inline filter-separator for compressed air systems using 3/4 inch NPT threaded connections with flow requirements up to 70 CFM and operating pressures up to 250 psi.

Installation Notes

Installation should be performed by a qualified pipefitter or maintenance technician following applicable compressed air system codes. Depressurize and lock out the compressed air supply completely before installing or servicing this unit. Mount the separator in the correct flow direction as indicated on the body, and verify all NPT threaded connections are properly sealed with thread sealant rated for compressed air service. Confirm system operating pressure and temperature do not exceed the rated maximums before returning the line to service.
