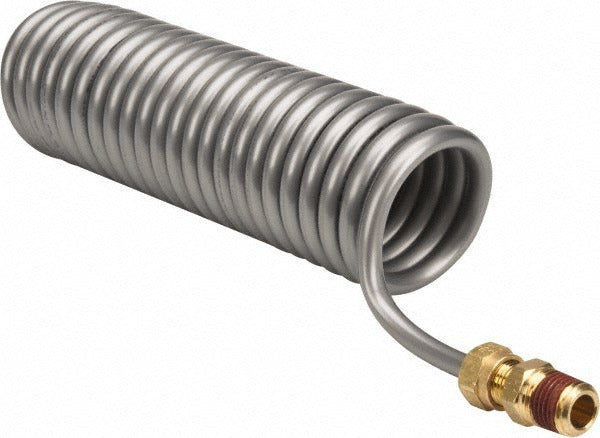

Parker 811537 Coiled Self Storing Nylon Hose 150 Psi

Product Description

The PARKER 811537 is a coiled self-storing nylon air hose designed for compressed air and pneumatic tool applications. With a maximum working pressure of 150 psi and a temperature range of -40 to 200 degrees F, this hose handles the demands of daily shop and field use. The extended length is 4.5 inches coiled, with a 0.17-inch inside diameter and a 1/4-inch outside diameter. Parker NTA brass fittings are integrated at both ends with a 1/4 x 1/4 thread size, providing a reliable seal without additional adapters. The silver nylon construction keeps the hose lightweight at 0.27 pounds. Pneumatic technicians, plumbers, and HVAC mechanics install this type of hose where a self-retracting, compact coil is needed at a tool drop or service panel.

This coiled hose is suited for residential and light commercial pneumatic service work, including air tool connections, blow guns, and instrumentation supply lines. The self-storing coil design reduces clutter and trip hazards in tight mechanical rooms or shop environments. The Parker NTA brass fittings are standard in many pneumatic systems, making this hose a direct-fit replacement or addition in existing compressed air setups. The 2-inch tail length on each end provides working clearance at the connection point.

Key Features

• Maximum working pressure of 150 psi for standard compressed air service
• Temperature rated from -40 to 200 degrees F for year-round indoor and outdoor use
• Nylon construction resists kinking, abrasion, and most shop chemicals
• Parker NTA brass fittings with 1/4 x 1/4 thread for secure, leak-resistant connections
• Self-storing coil design keeps the hose compact and tangle-free between uses
• Lightweight at 0.27 pounds for easy handling and portable applications

Compatibility

Designed as an OEM-style replacement or addition for pneumatic systems using Parker NTA brass fittings with 1/4 x 1/4 threaded connections and standard 1/4-inch outside diameter coiled hose.

Installation Notes

Shut off and bleed compressed air pressure from the supply line before disconnecting or installing this hose. Use appropriate thread sealant approved for pneumatic applications on the NTA brass fittings if required by local practice. Do not exceed the 150 psi maximum working pressure rating or operate outside the rated temperature range. A licensed technician or trained mechanic should verify fitting compatibility before pressurizing the system.
