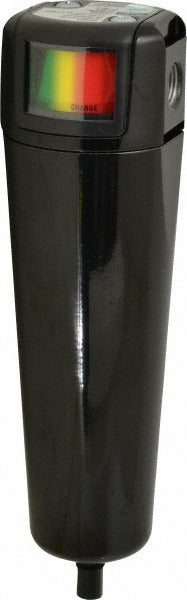

Parker 8104N-1A1-BX Oil Water Filter Separator 63 Cfm

Product Description

The PARKER 8104N-1A1-BX is a compressed air oil-water filter and separator designed to remove dust, oil, particulate, and liquid water from compressed air lines. It features an automatic drain, eliminating the need for manual bowl drainage during service intervals. With a maximum flow capacity of 63 CFM and a 250 psi maximum working pressure, this unit is rated for demanding production and mechanical environments. The 1/2 inch NPT end connections allow straightforward inline installation. At 11.3 inches tall and 3.3 inches wide, it fits into standard compressed air treatment stations without major modifications. Licensed HVAC technicians, plumbers, and industrial maintenance professionals install this type of separator as part of air preparation assemblies upstream of pneumatic tools and control equipment.

This filter-separator is suited for use in compressed air systems in light industrial, commercial, and mechanical room applications. It handles mixed contamination streams including aerosol oil carryover from compressors, water condensate, and fine particulate. The automatic drain function makes it appropriate for systems that run continuously or in environments where regular manual maintenance is not practical. Typical installation positions it downstream of the compressor and receiver tank, upstream of pressure regulators and control valves.

Key Features

• 63 CFM rated airflow capacity for high-demand compressed air systems
• 250 psi maximum working pressure for industrial-grade service
• Automatic drain removes accumulated liquid without manual intervention
• 1/2 inch NPT end connections for standard inline installation
• Removes dust, oil aerosols, particulate, and liquid water contamination
• Compact footprint at 11.3 inches tall and 3.3 inches wide

Compatibility

Designed as an OEM-style inline oil-water filter-separator for compressed air systems using 1/2 inch NPT connections and operating within 63 CFM flow and 250 psi pressure limits.

Installation Notes

Installation is typically performed by licensed mechanical or HVAC technicians following applicable codes for compressed air systems. Depressurize and isolate the air line completely before removing existing components or threading in the new unit. Apply thread sealant appropriate for compressed air service to the NPT connections. Do not exceed the 250 psi maximum working pressure or the 130 degrees F maximum operating temperature rating.
