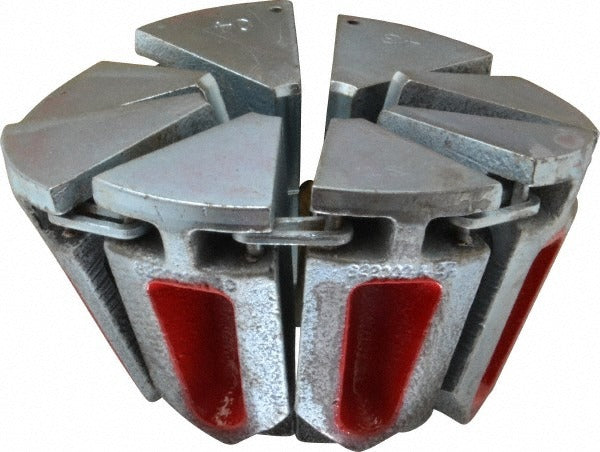

Parker 80C-A04 43 Series Hose Crimping Die 1/4 Inch

Product Description

The PARKER 80C-A04 is a 43 Series hose crimping die set designed for use with compatible Parker crimping machines. It is sized for 1/4-inch hose and provides the precision die geometry required to produce consistent, leak-free hydraulic hose assemblies. The die set is a consumable tooling component — it mounts into the crimper head and forms the ferrule or shell around the hose end fitting during the crimping cycle. Hydraulic hose assembly technicians, fluid power shops, and mobile equipment service operations rely on properly matched dies to meet manufacturer crimp specifications and maintain hose assembly integrity.

This die is appropriate for shops and field service operations assembling or repairing hydraulic hose lines in the 1/4-inch size range. Typical applications include mobile hydraulic equipment, industrial machinery, and fluid power systems where Parker 43 Series hose and fittings are used. The 80C-A04 is sold as a single die set and is intended for use with Parker crimping equipment that accepts 43 Series tooling.

Key Features

• Sized for 1/4-inch hose diameter in the Parker 43 Series product line
• Designed for use with Parker-compatible crimping machines accepting 43 Series dies
• Single die set — direct replacement or add-on tooling for crimper die inventory
• Weighs 5.7 pounds — solid construction for repeatable crimping performance

Compatibility

Designed for use with Parker crimpers that accept 43 Series dies. Intended for 1/4-inch Parker 43 Series hose assemblies. Confirm crimper model compatibility with Parker tooling documentation before use.

Installation Notes

Die sets are installed and removed by qualified hydraulic hose assembly technicians following the crimper manufacturer's tooling changeover procedure. Always de-energize and relieve stored hydraulic pressure in the crimping machine before changing dies. Verify the die set is fully seated and locked in the crimper head before initiating a crimp cycle. Follow Parker crimp specifications for the specific hose and fitting combination being assembled.
