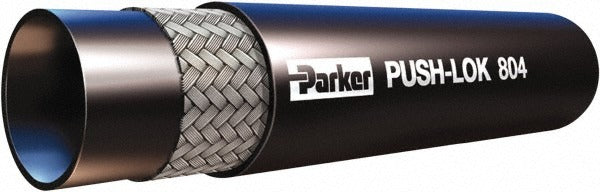

Parker 804-6-RL Push-on Air Hose 3/8 in Id 150 Psi

Product Description

The PARKER 804-6-RL is a push-on air hose designed for compressed air distribution in industrial, shop, and field service applications. It features a 3/8 inch inside diameter and a 0.78 inch outside diameter, with a working pressure rating of 150 psi. The hose is constructed from synthetic rubber and is suitable for use across a wide temperature range of -40 degrees F to 158 degrees F. It is sold in cut-to-length increments and is a common choice for pneumatic tool lines, compressor drops, and shop air systems installed by HVAC technicians, plumbers, and general mechanical contractors.

This hose is well suited for both permanent shop installations and portable pneumatic setups. The push-on end connection design eliminates the need for clamps or fittings with barbed retention features, making field assembly straightforward. Typical applications include air tool supply lines, compressor outlet hose runs, and service bay drops in light industrial and commercial settings. The black synthetic rubber construction resists weathering and abrasion under normal shop conditions. Minimum cut length is 25 feet, with the full coil running 350 feet, priced in 1-foot increments.

Key Features

• Push-on design allows tool-free hose assembly without clamps
• 3/8 inch ID supports standard pneumatic tool and air line sizing
• 150 psi working pressure rating handles typical shop air system demands
• Rated from -40 degrees F to 158 degrees F for year-round indoor and outdoor use
• Synthetic rubber construction provides abrasion and weathering resistance
• Sold cut-to-length in 1-foot increments with a 25-foot minimum order

Compatibility

Designed as a cut-to-length push-on air hose for use with standard 3/8 inch push-on pneumatic fittings in compressed air distribution systems. No specific OEM model compatibility was stated in the product data.

Installation Notes

Installation is typically performed by mechanical contractors or pneumatic system technicians. Always depressurize and lock out the air supply before making or breaking hose connections. Verify that all fittings and end connections are rated at or above the 150 psi working pressure of this hose. Inspect the cut ends for clean, square cuts before seating onto push-on fittings to ensure a secure seal.
